Throttle Motor Mount Drawings

Here's the package of drawings that Scott put together for the machinist.

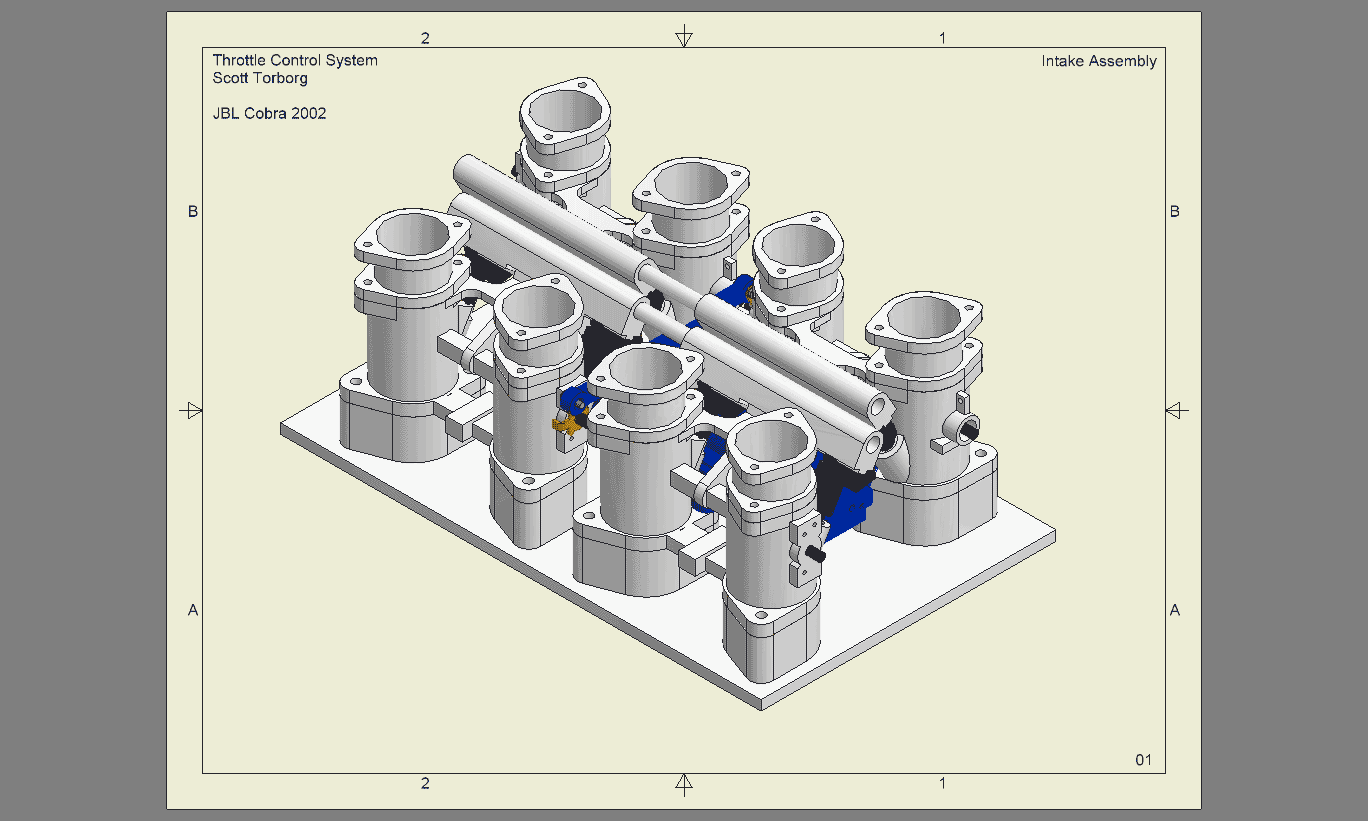

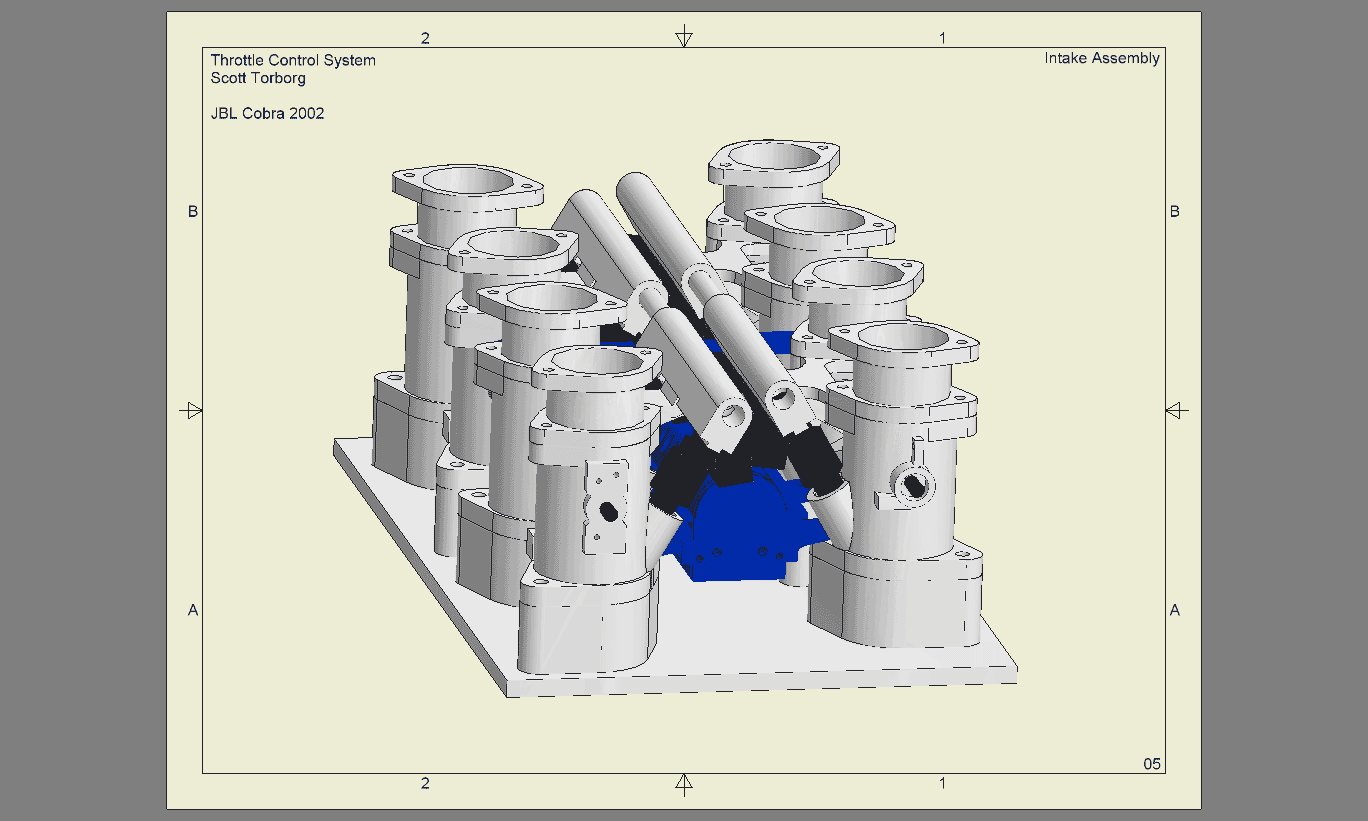

Drawing 1 - 3D solid model (projected view) showing motor mount and throttle linkage with throttle bodies and fuel rails.

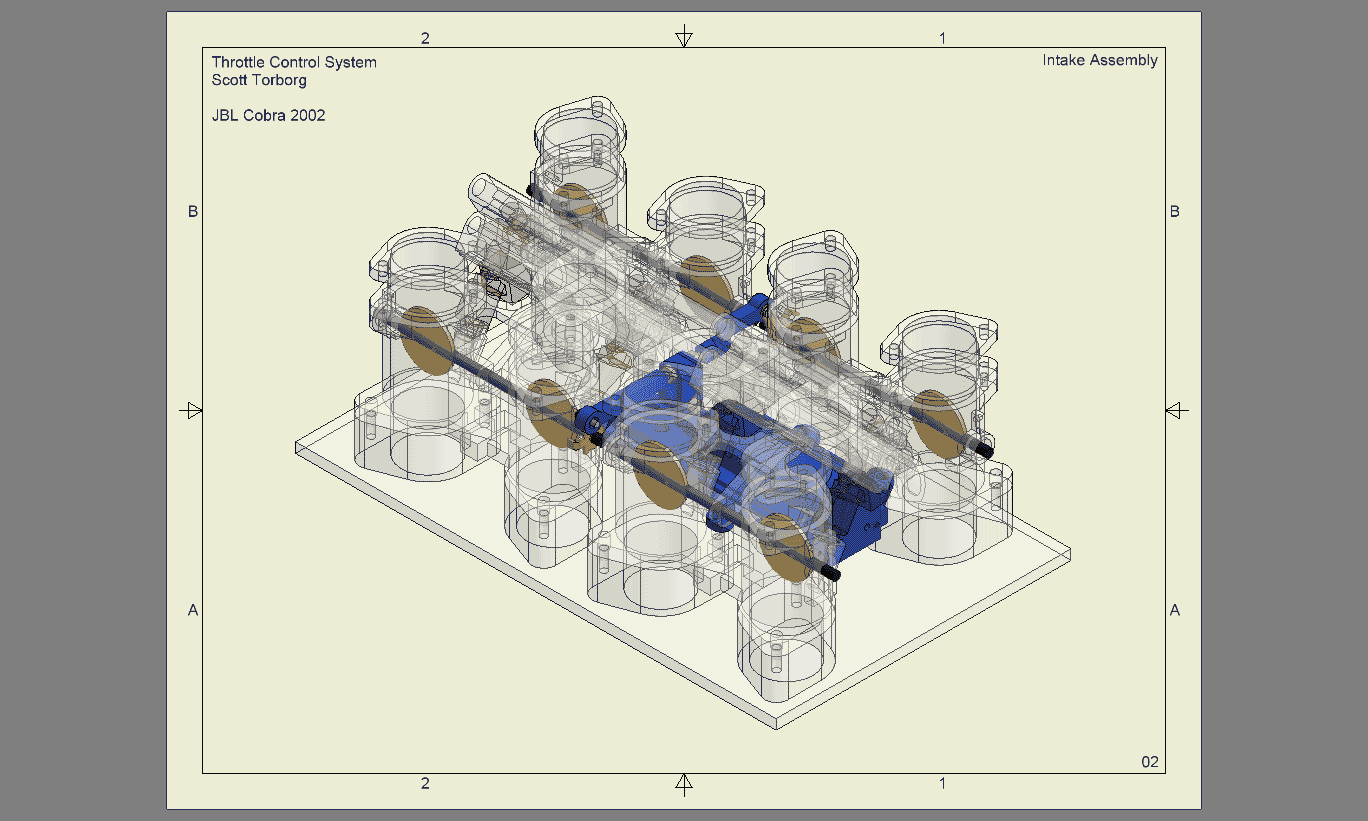

Drawing 2 - Same as Drawing 1 but throttle bodies and fuel rails are semi-transparent.

Drawing 3 - 3D solid model (end view) showing motor mount and throttle linkage with semi-transparent throttle bodies and fuel rails.

Drawing 4 - 3D solid model (top view) showing motor mount and throttle linkage with semi-transparent throttle bodies and fuel rails.

Drawing 5 - 3D solid model (projected view 2) showing motor mount and throttle linkage with throttle bodies and fuel rails.

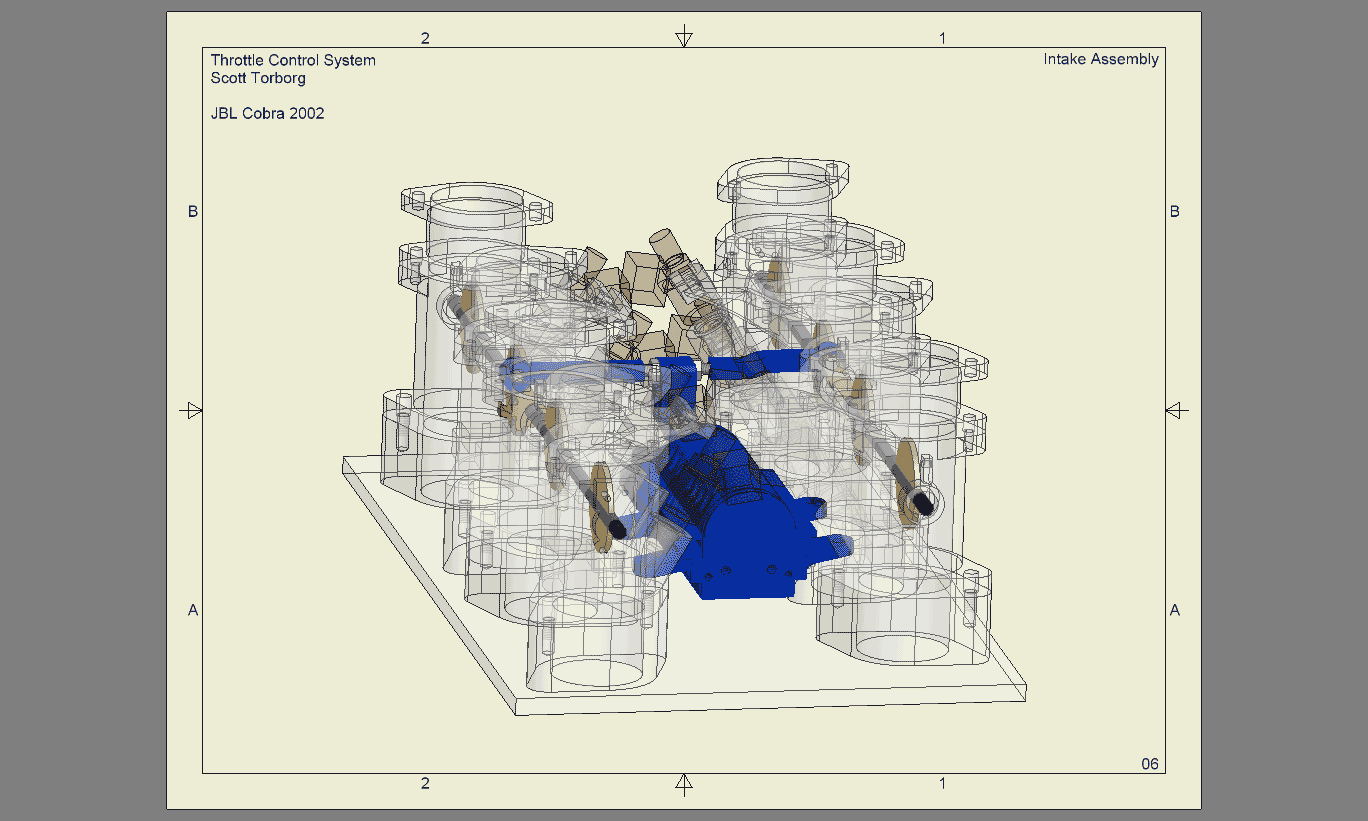

Drawing 6 - Same as Drawing 5 but throttle bodies and fuel rails are semi-transparent.

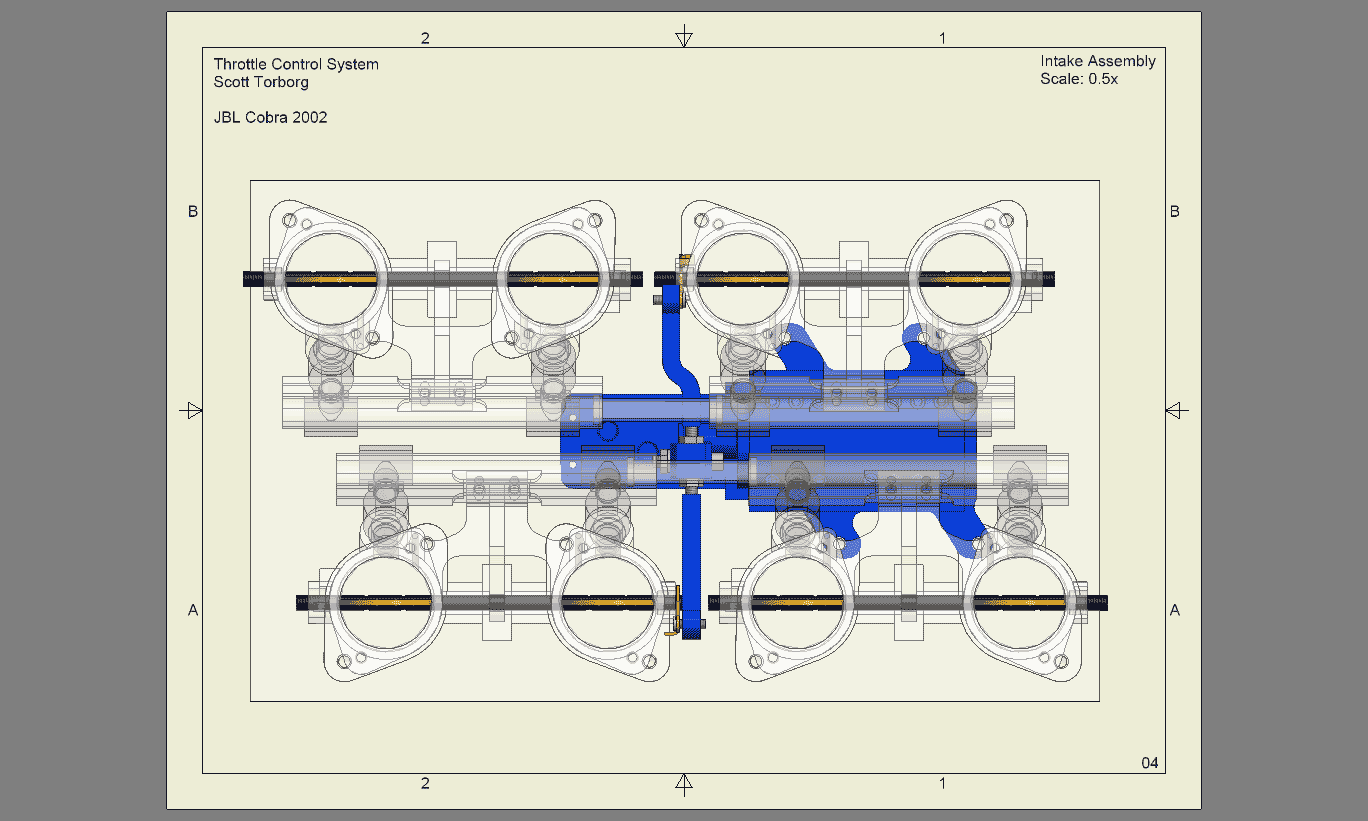

Drawing 7 - 3D solid model (projected view) showing motor location (without mount). Throttle bodies and fuel rails shown semi-transparent.

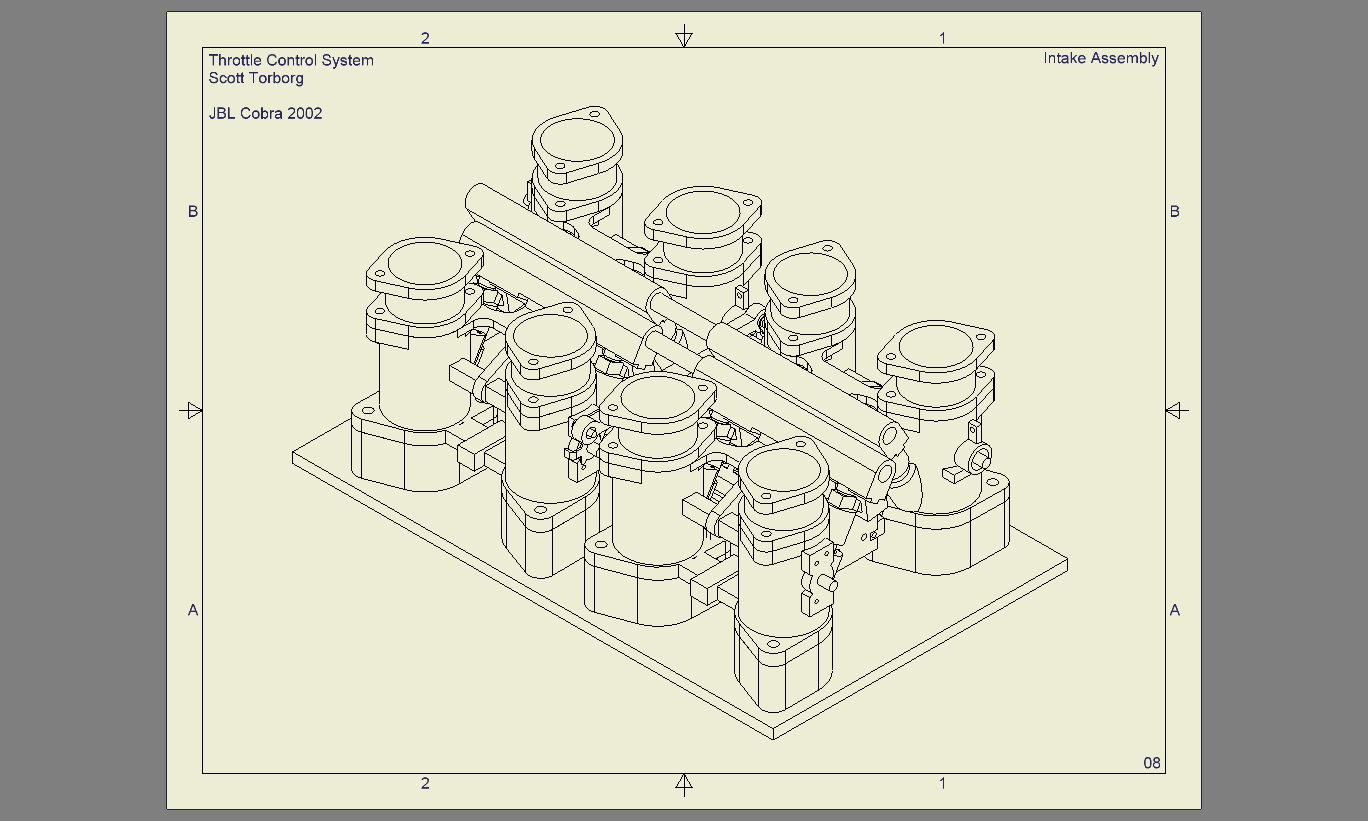

Drawing 8 - 3D outline model (projected view) showing motor mount and throttle linkage with throttle bodies and fuel rails.

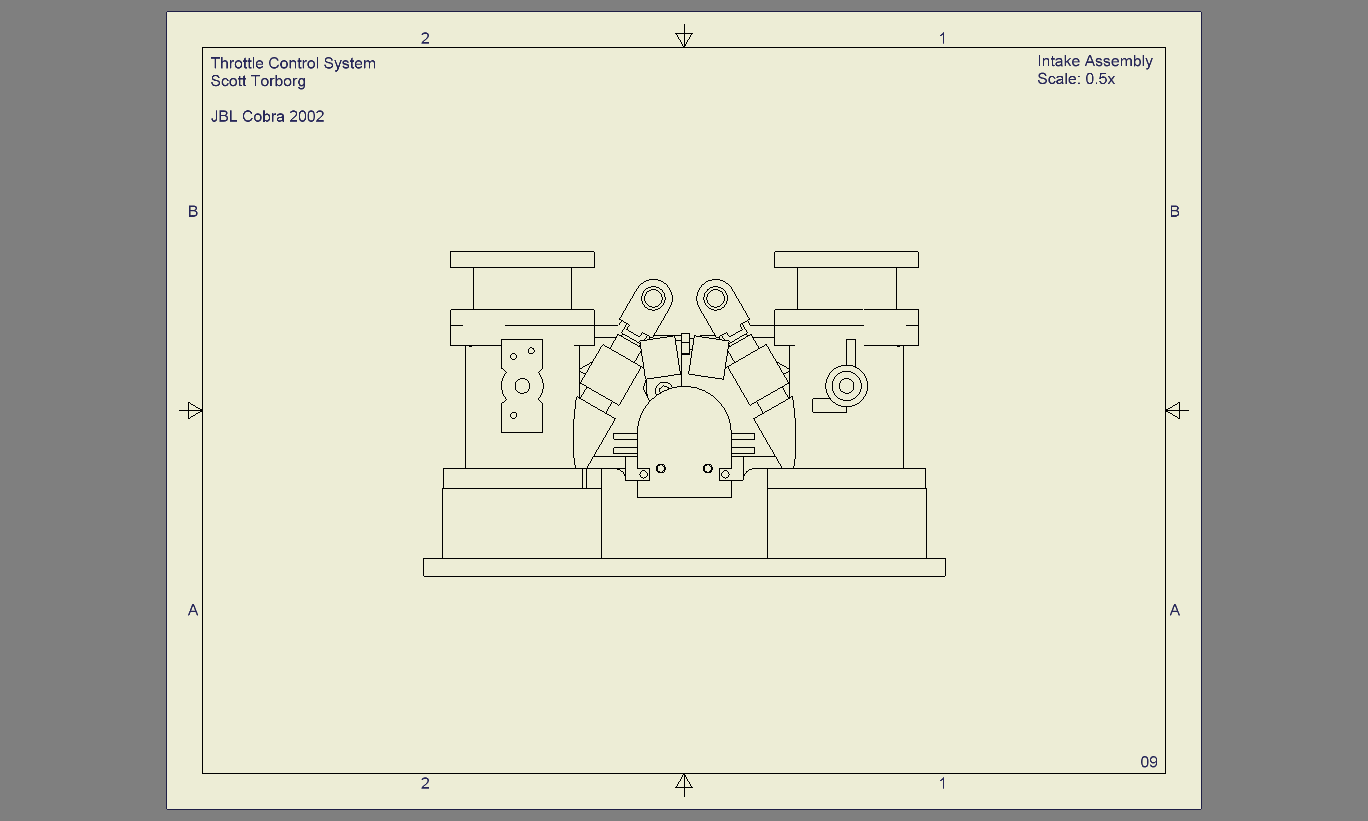

Drawing 9 - 3D outline model (end view) showing motor mount and throttle linkage with throttle bodies and fuel rails.

Drawing 10 - 3D solid model of individual parts - left and right crossbars, center crossbar post, left and right mouting rails, front and rear plates, throttle lever, motor fitting.

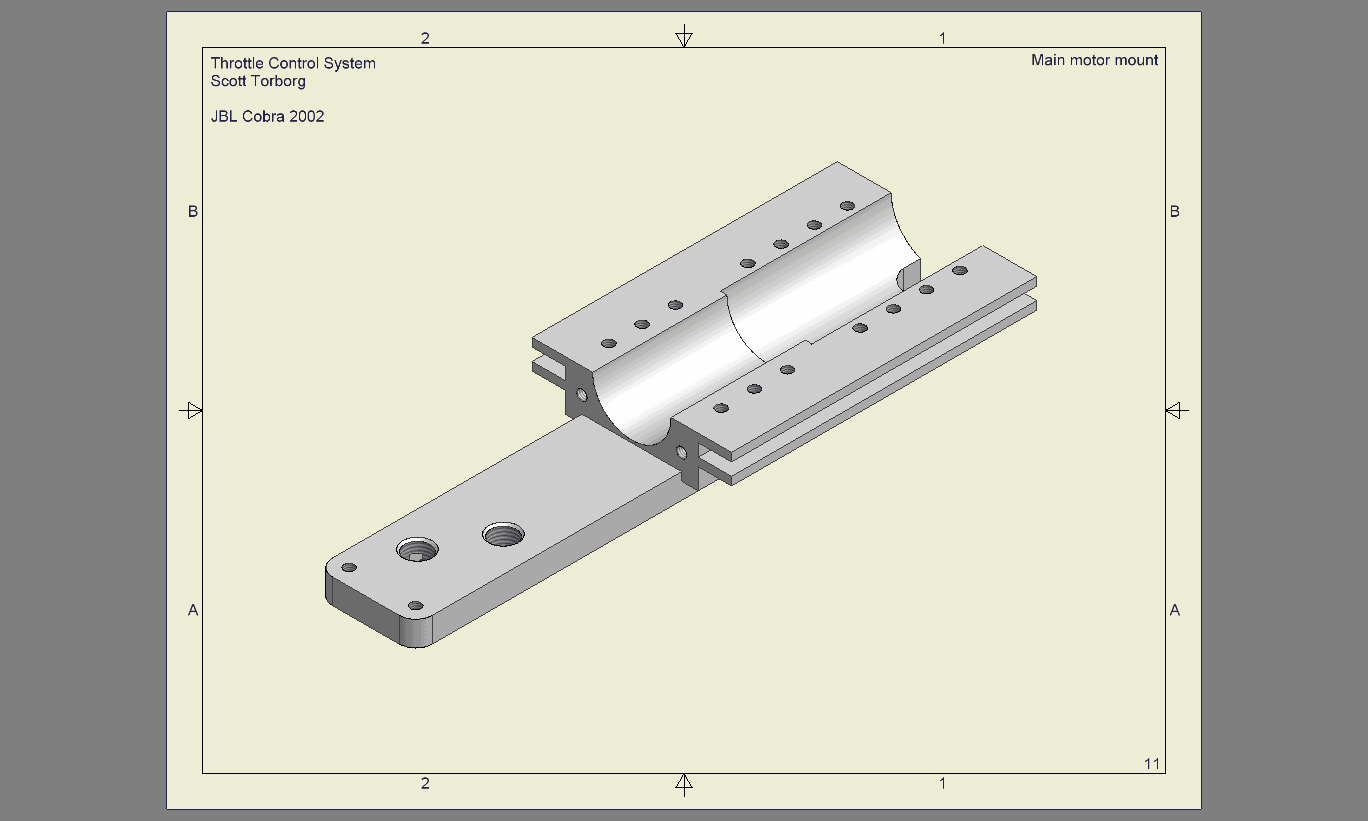

Drawing 11 - 3D solid model of primary motor mount.

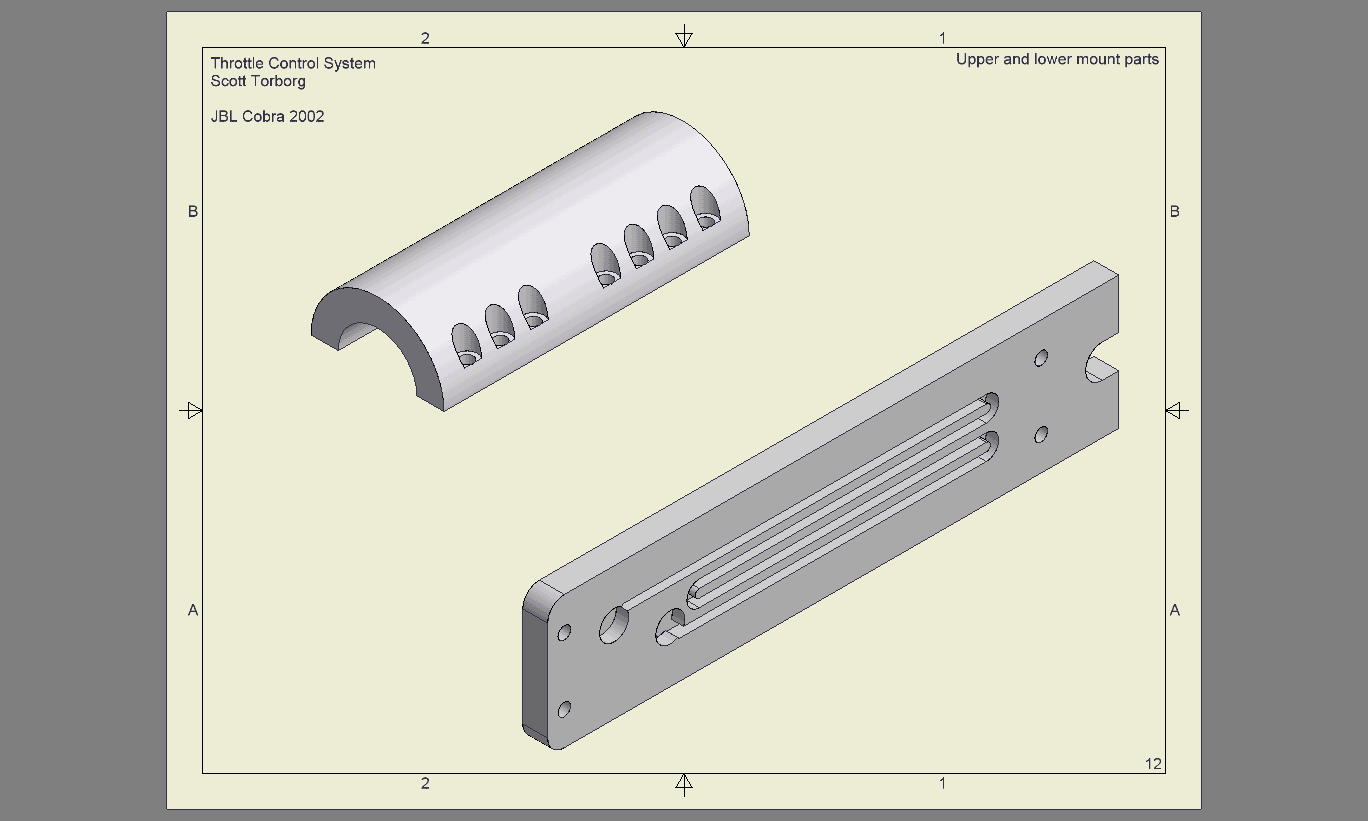

Drawing 12 - 3D solid model of upper and lower mount parts.

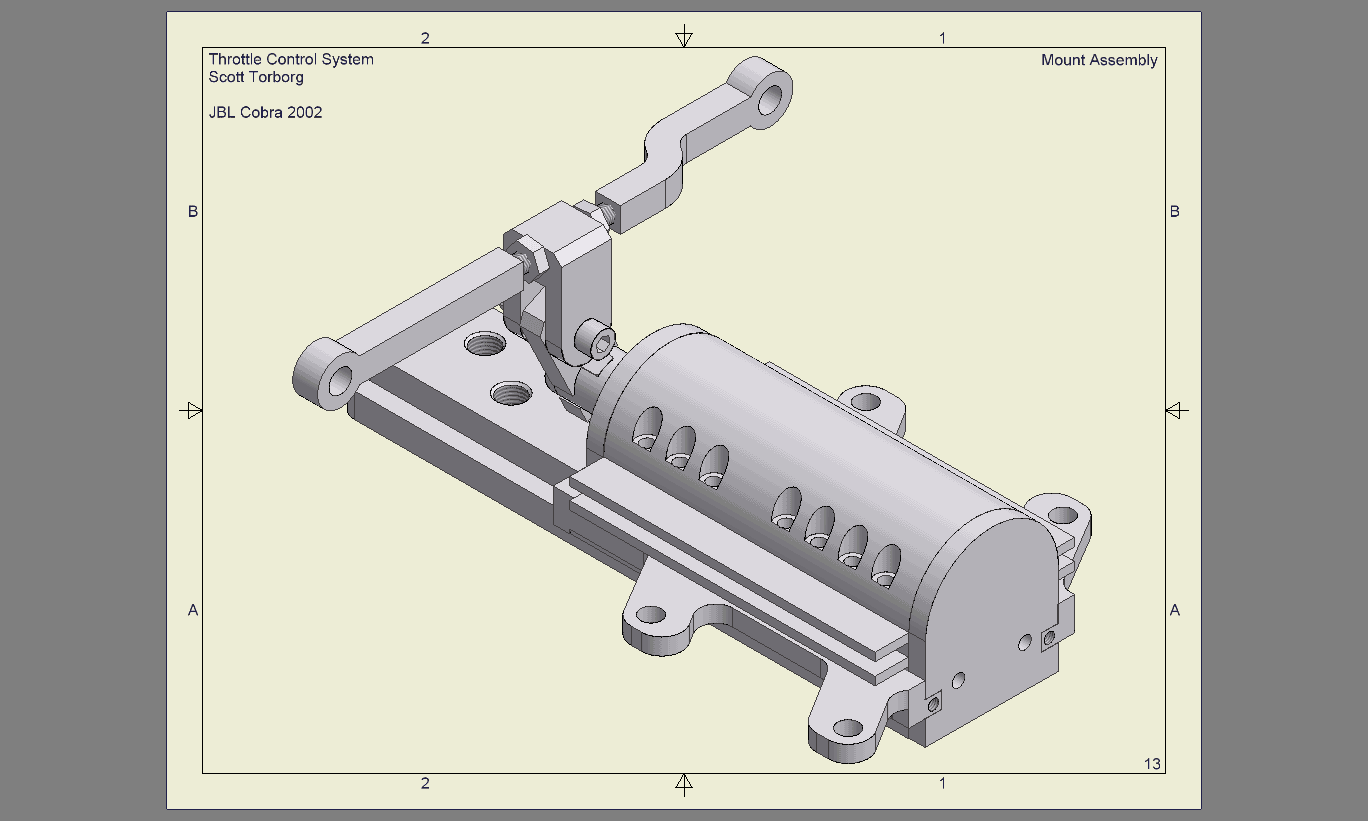

Drawing 13 - 3D solid model of assembled motor mount (projected view).

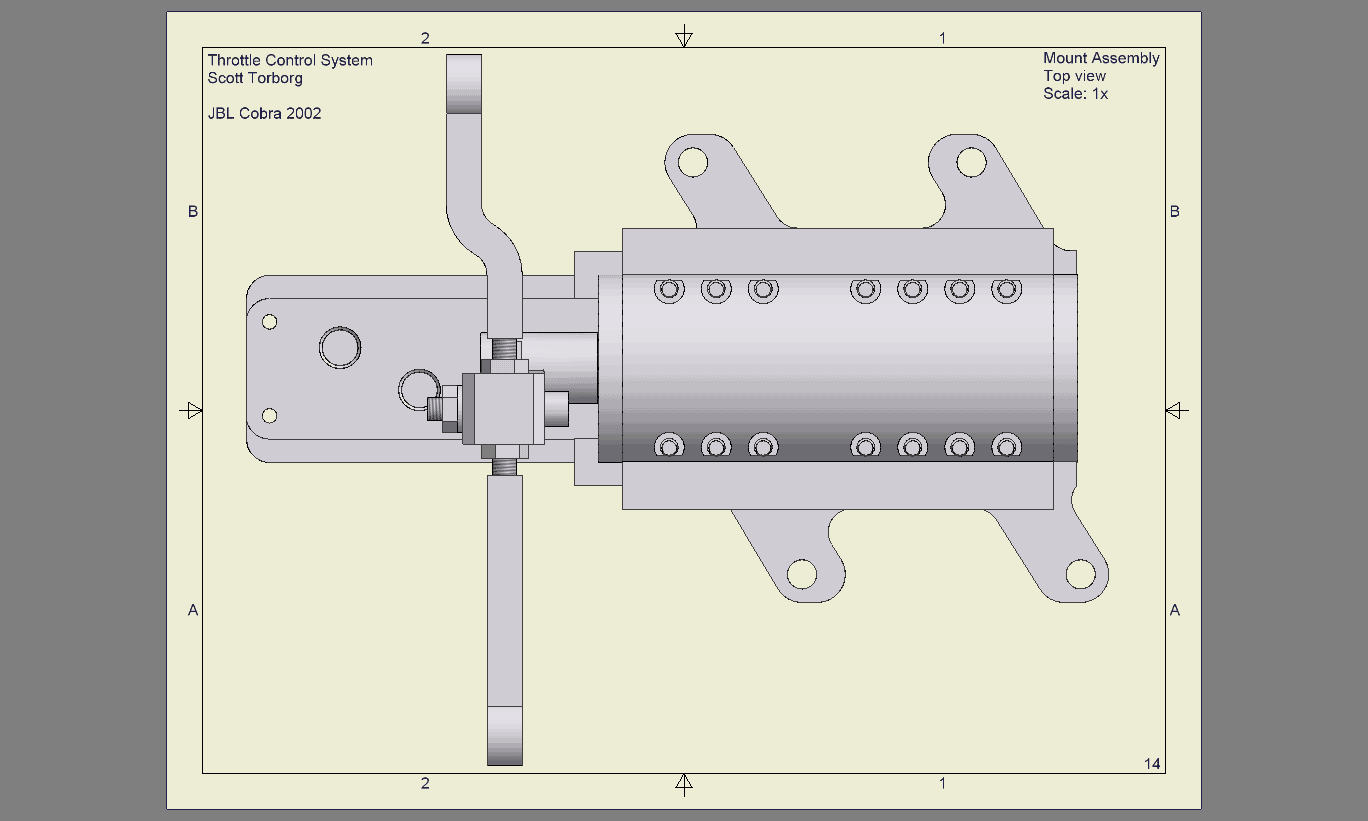

Drawing 14 - 3D solid model of assembled motor mount (top view).

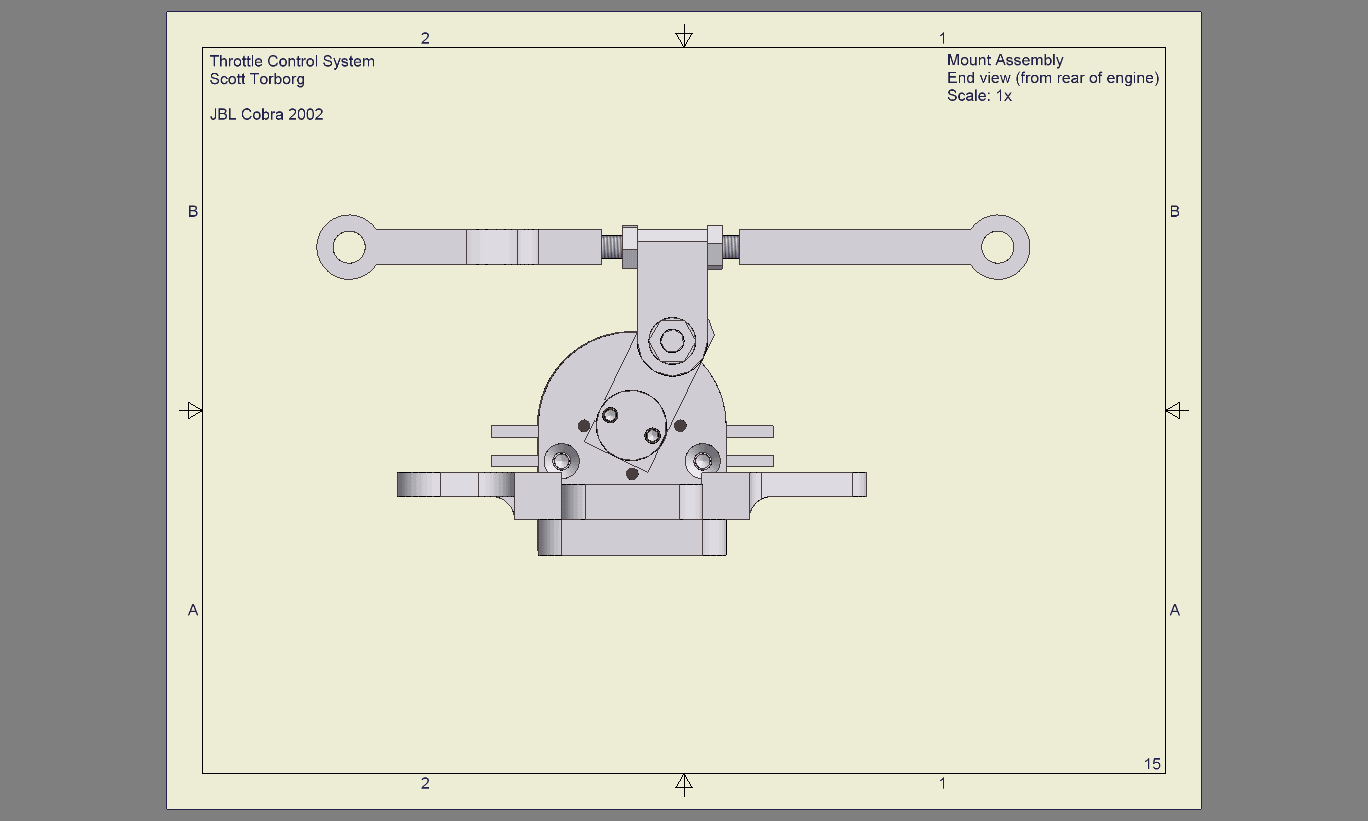

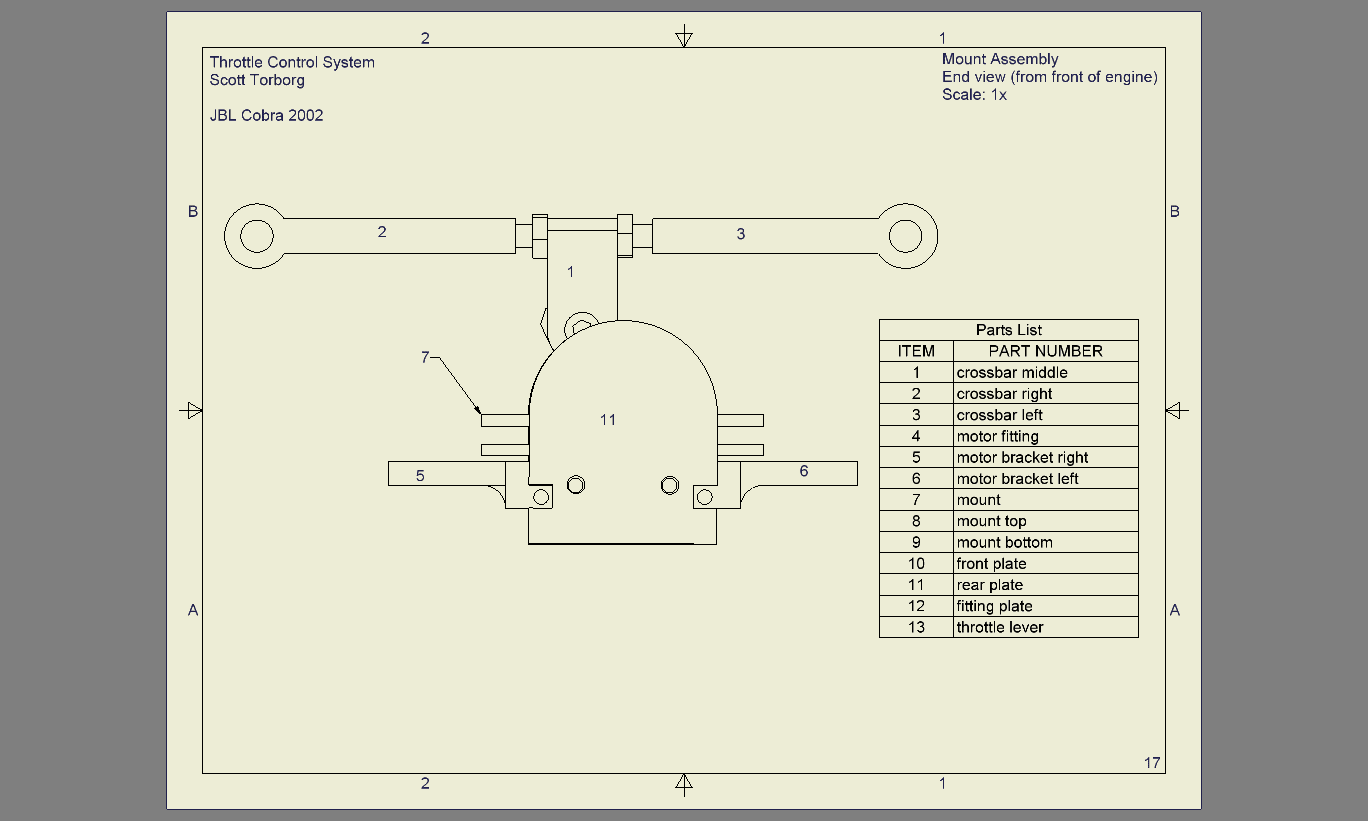

Drawing 15 - 3D solid model of assembled motor mount (end view).

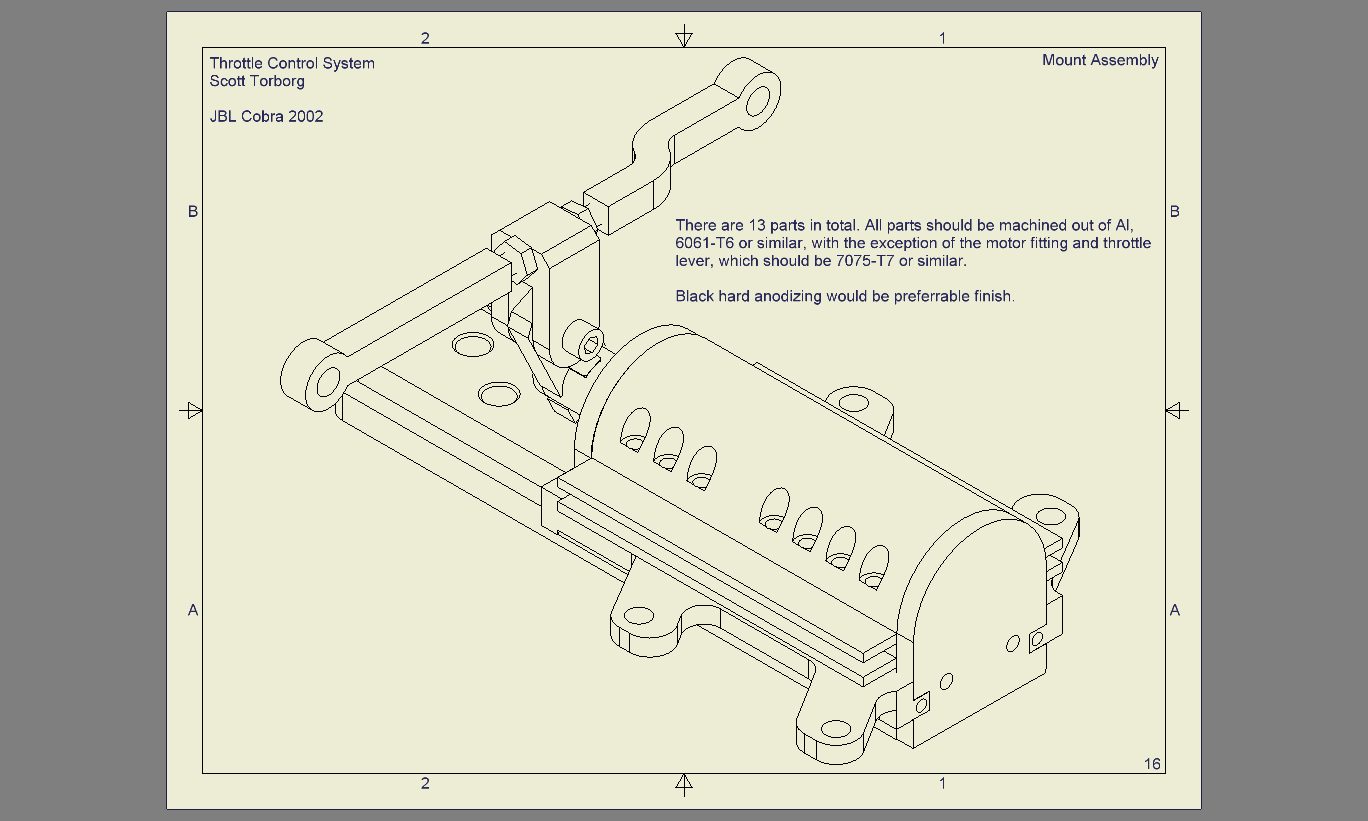

Drawing 16 - Same as drawing 13 except 3D outline model.

Drawing 17 - Same as drawing 15 except 3D outline model.

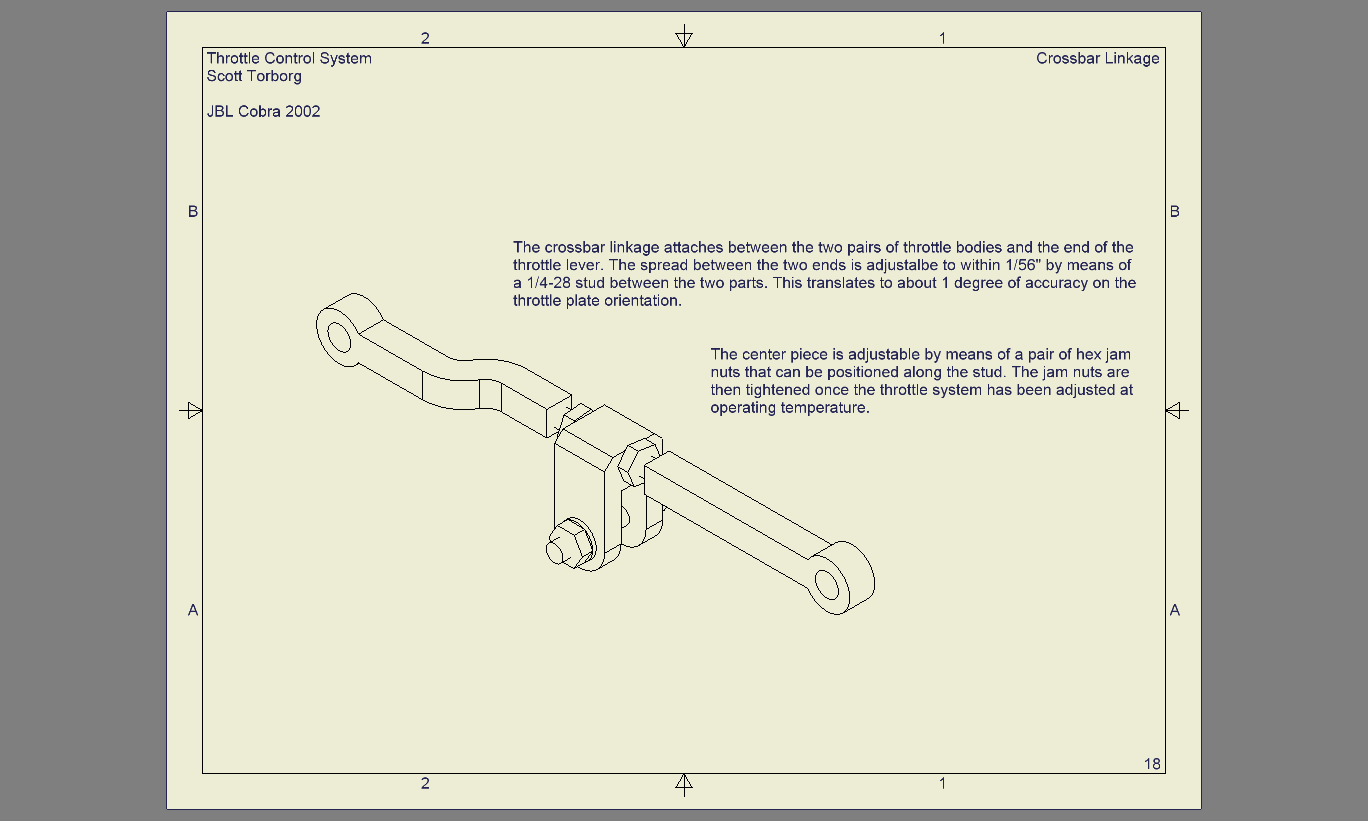

Drawing 18 - 3D outline model of assembled crossbar (projected view).

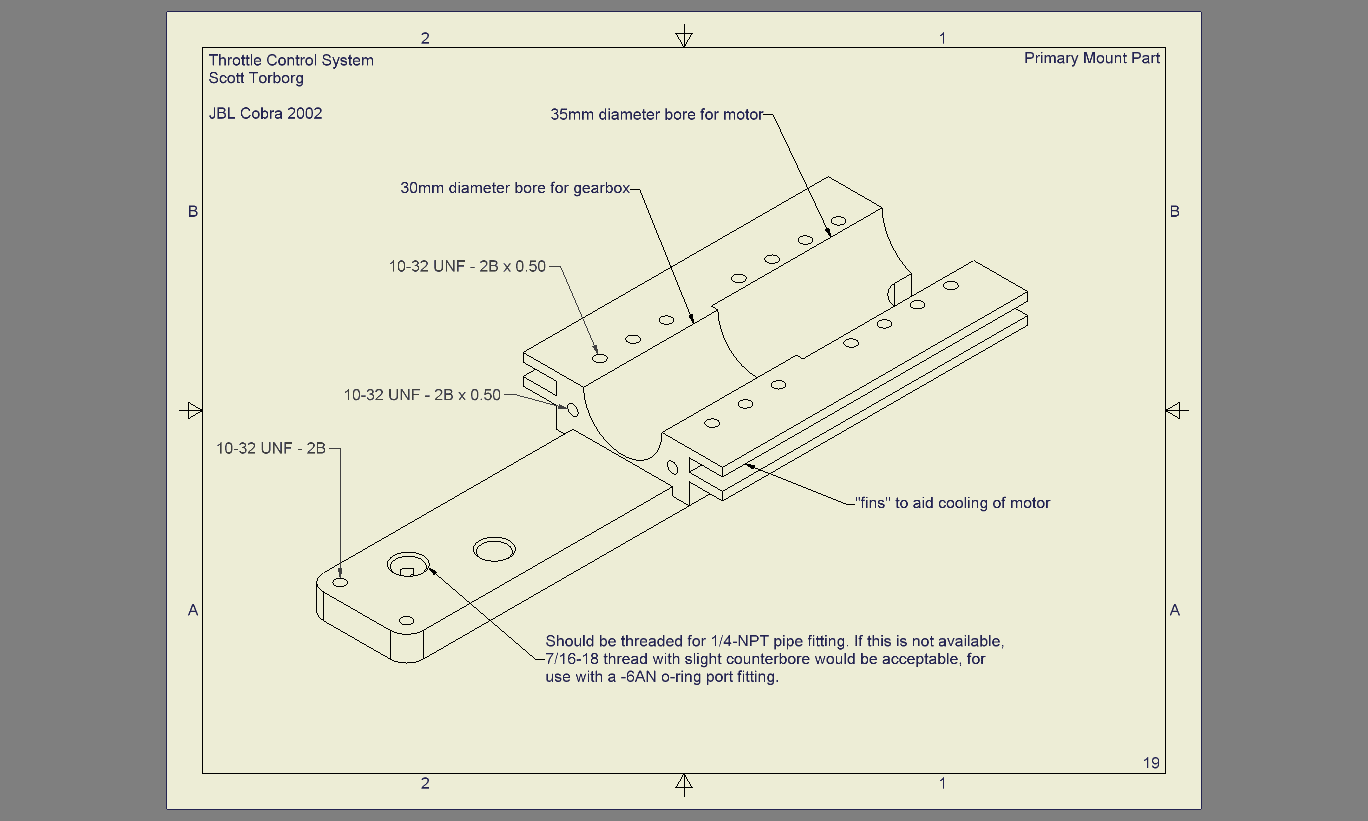

Drawing 19 - 3D outline model of primary motor mount with holes dimensioned (projected view).

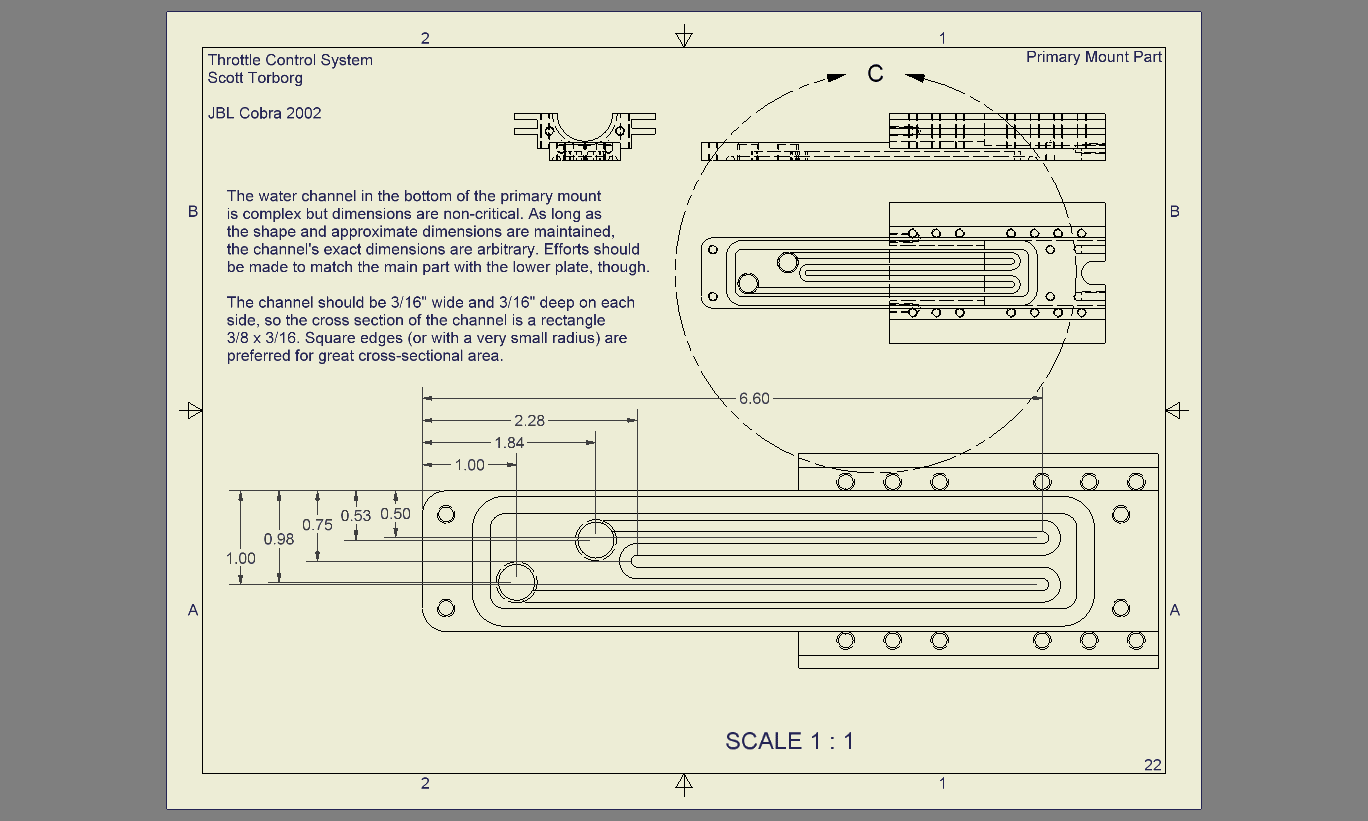

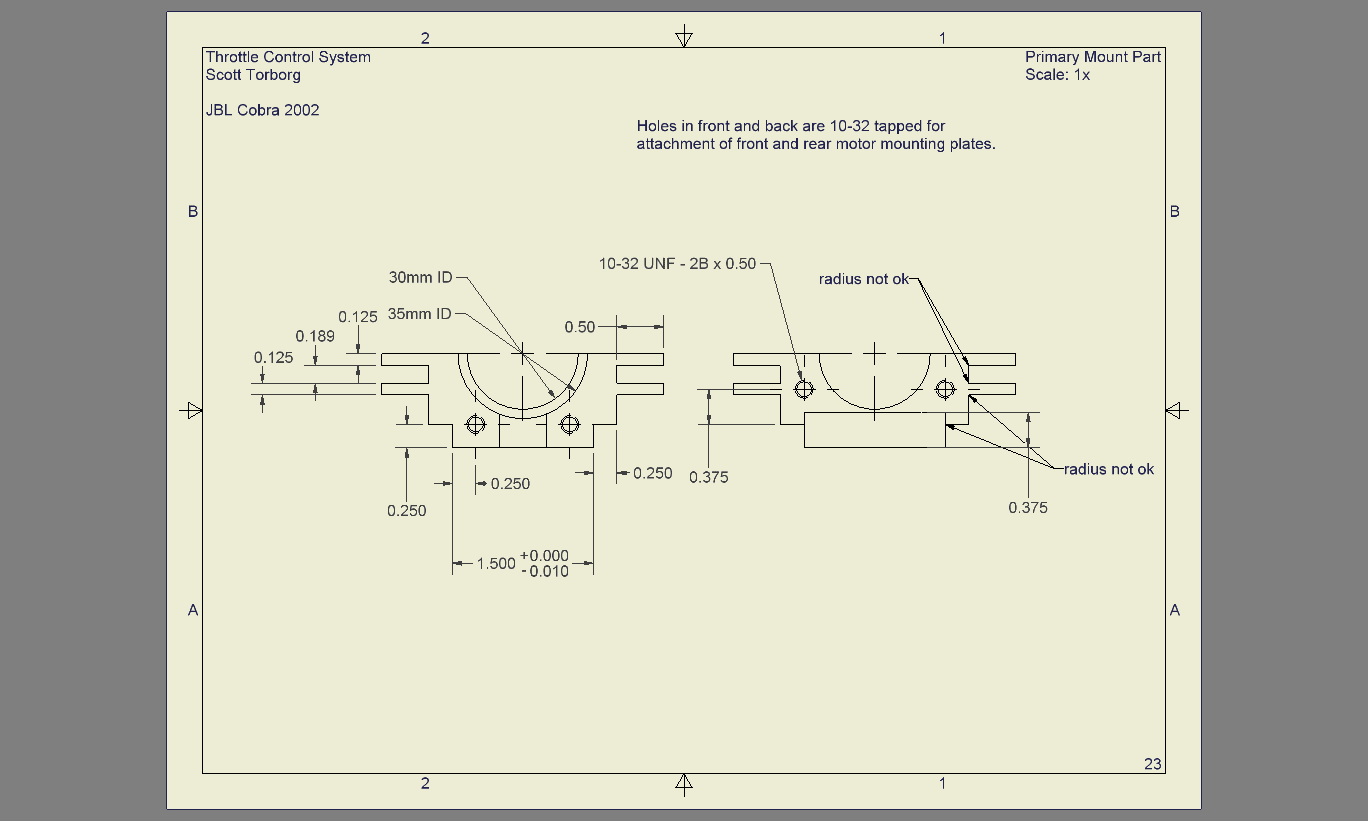

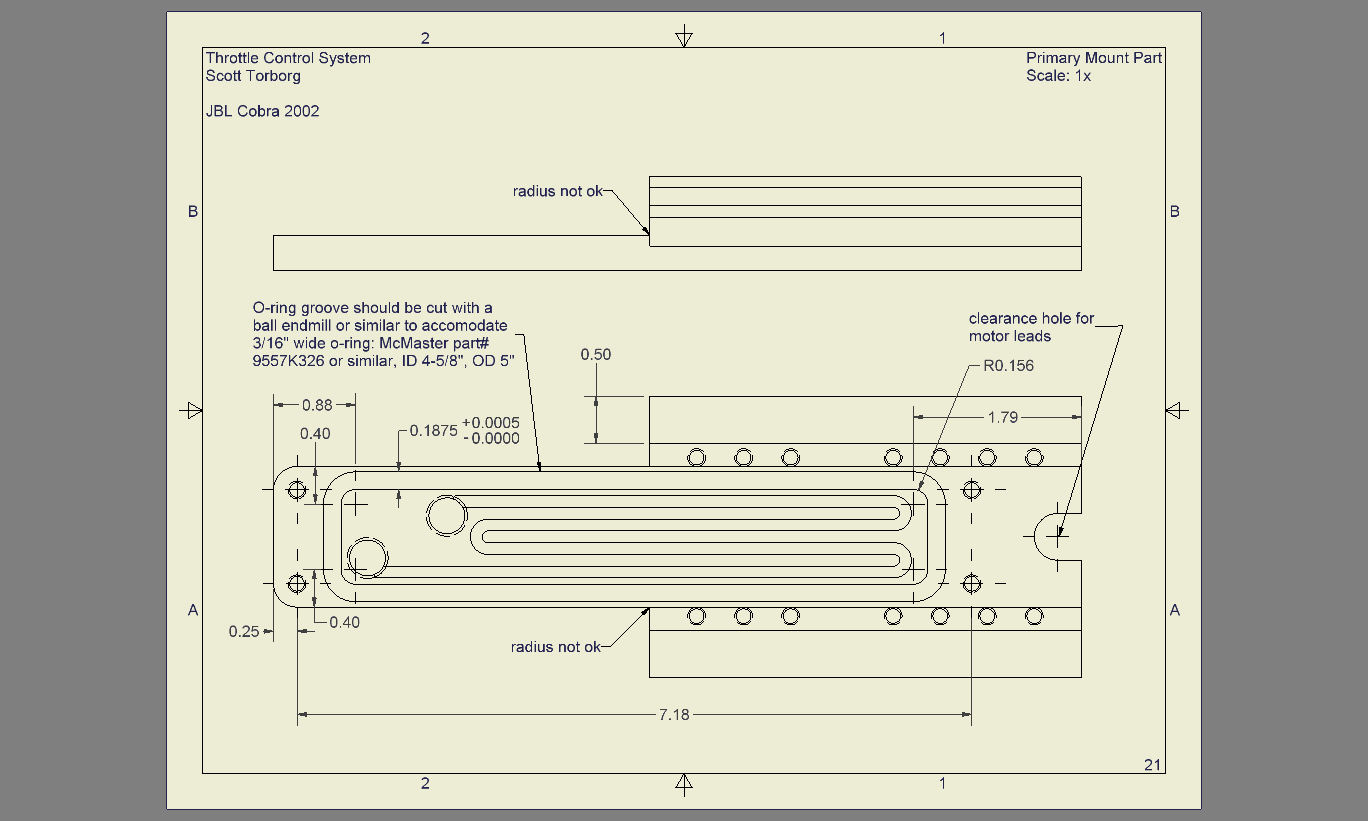

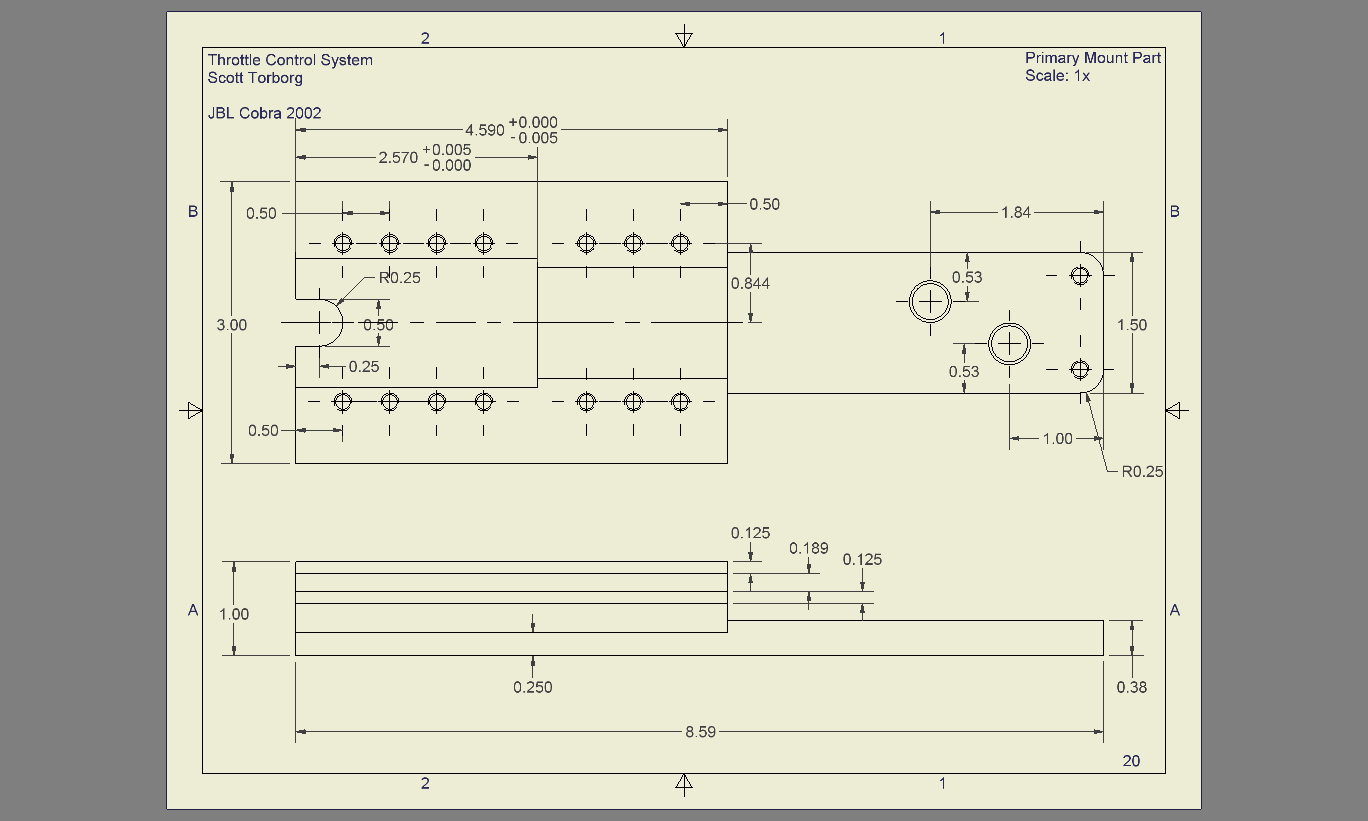

Drawing 20 - Top and side view of primary motor mount with dimensions.

Drawing 21 - Side and bottom view of primary motor mount with dimensions.

Drawing 22 - Bottom view of primary motor mount with more dimensional information.

Drawing 23 - End views of primary motor mount with dimensions.

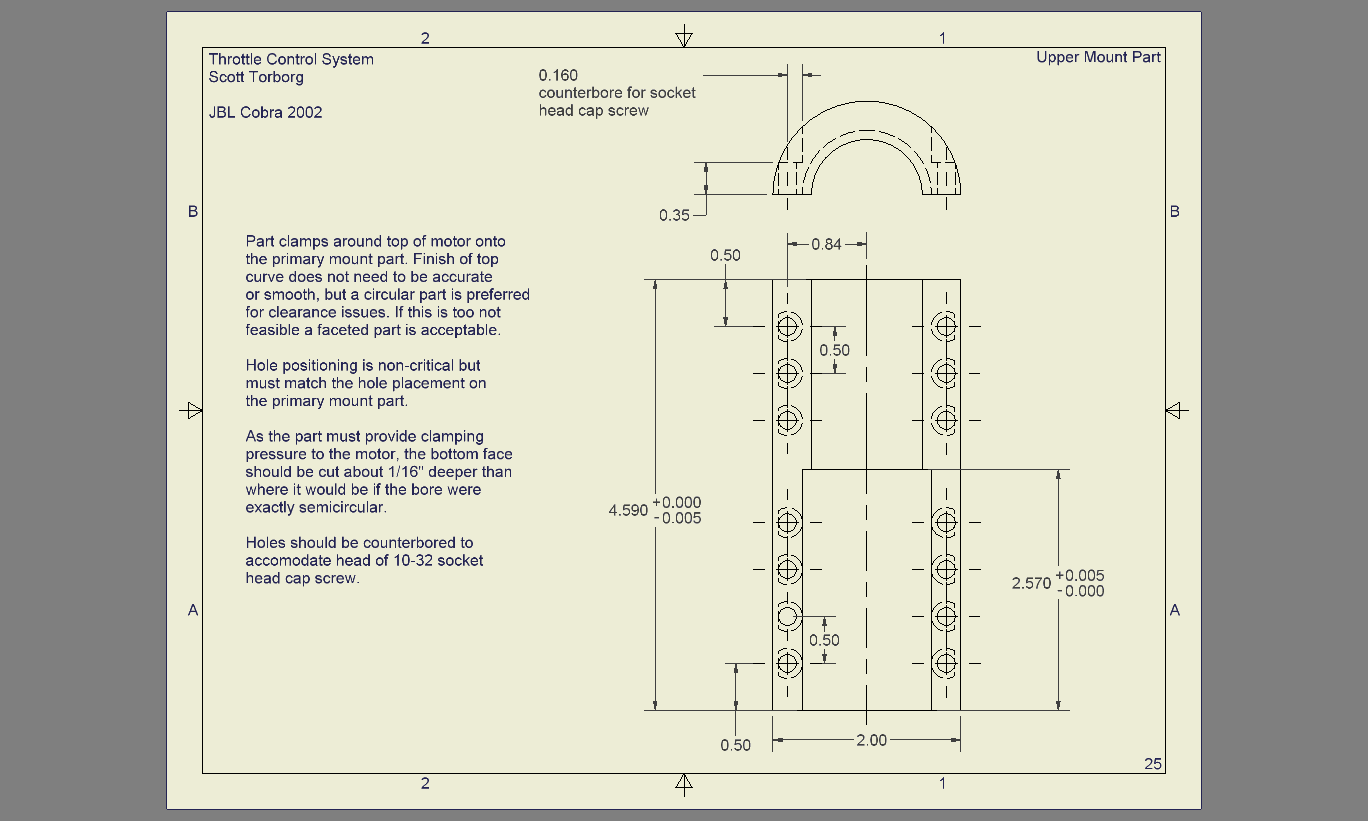

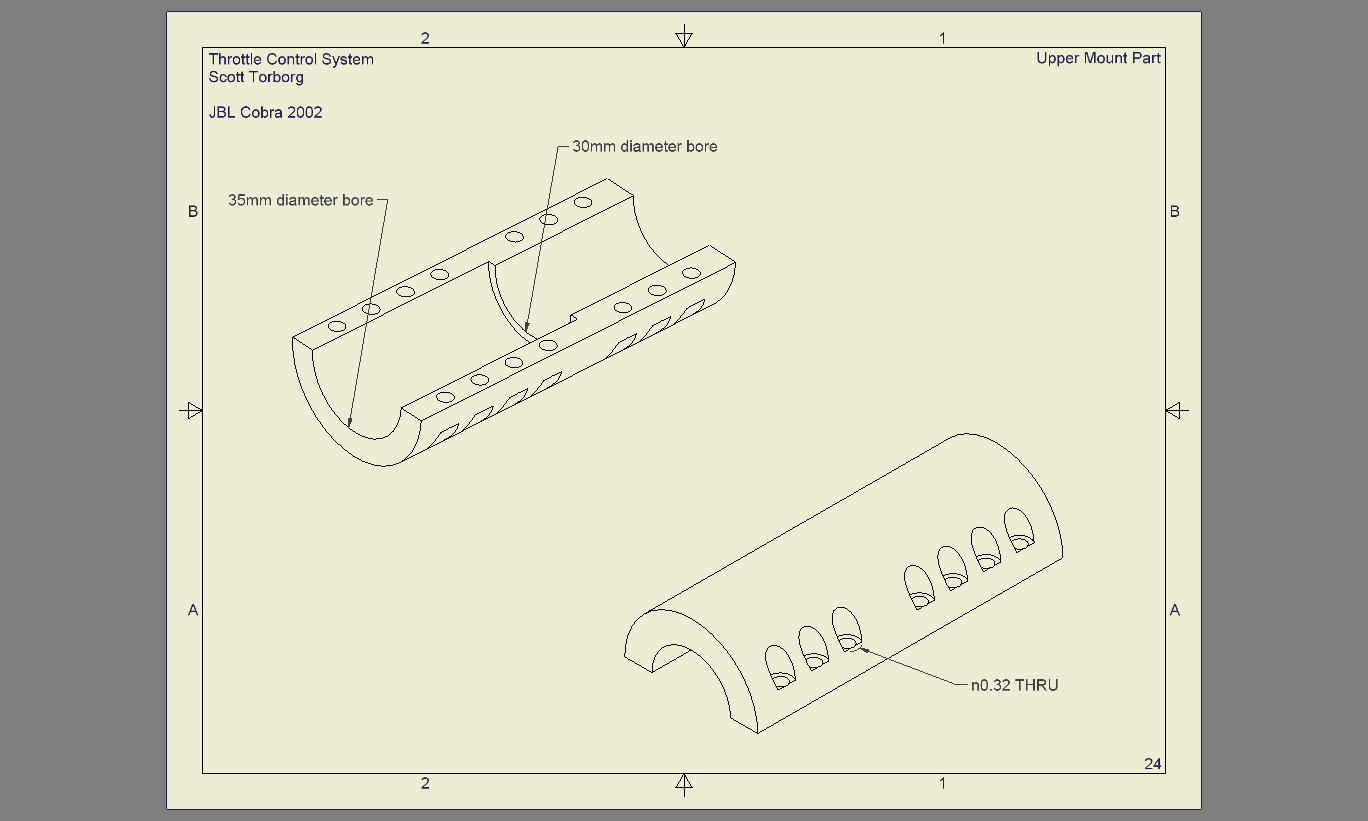

Drawing 24 - Projected views of upper motor mount with holes dimensioned.

Drawing 25 - Side and bottom view of upper motor mount with dimensions.

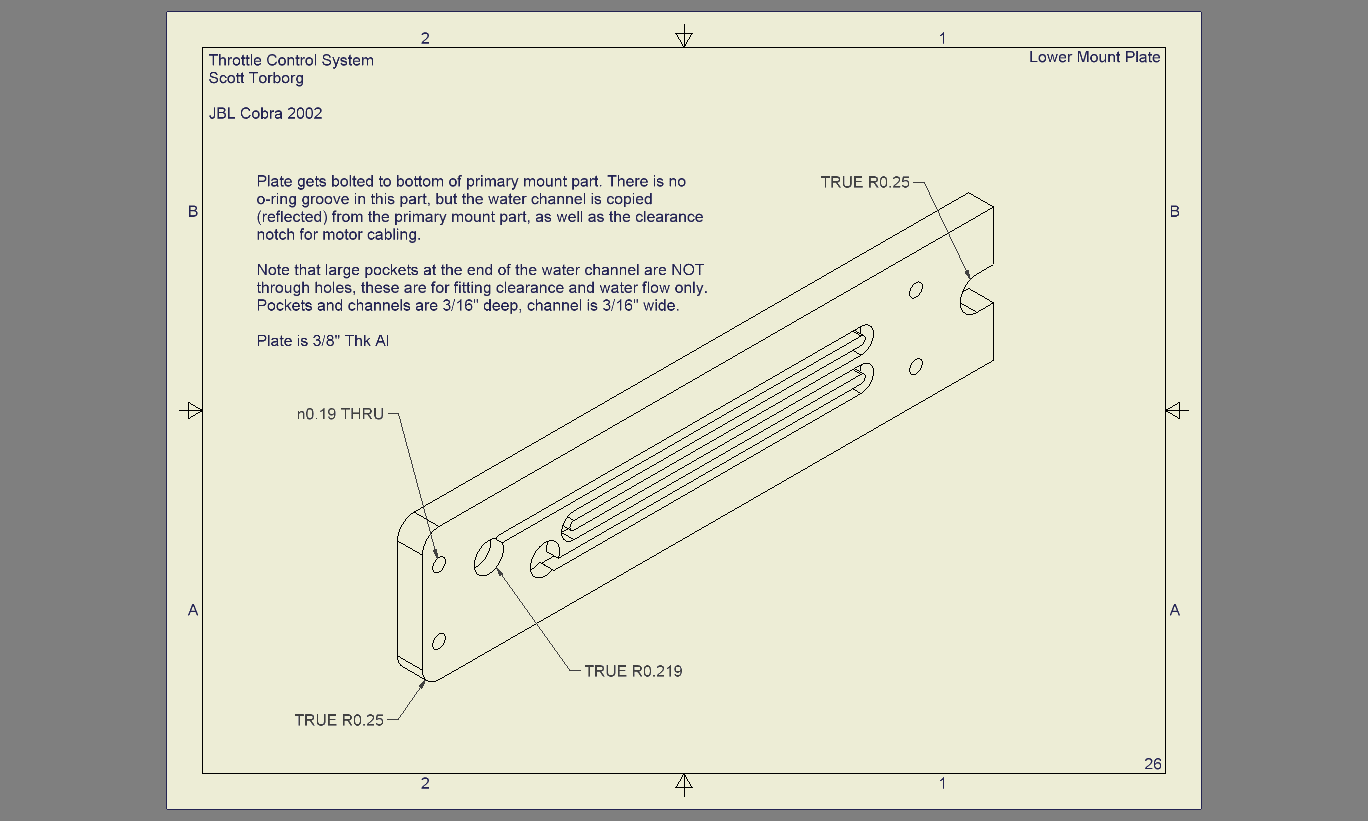

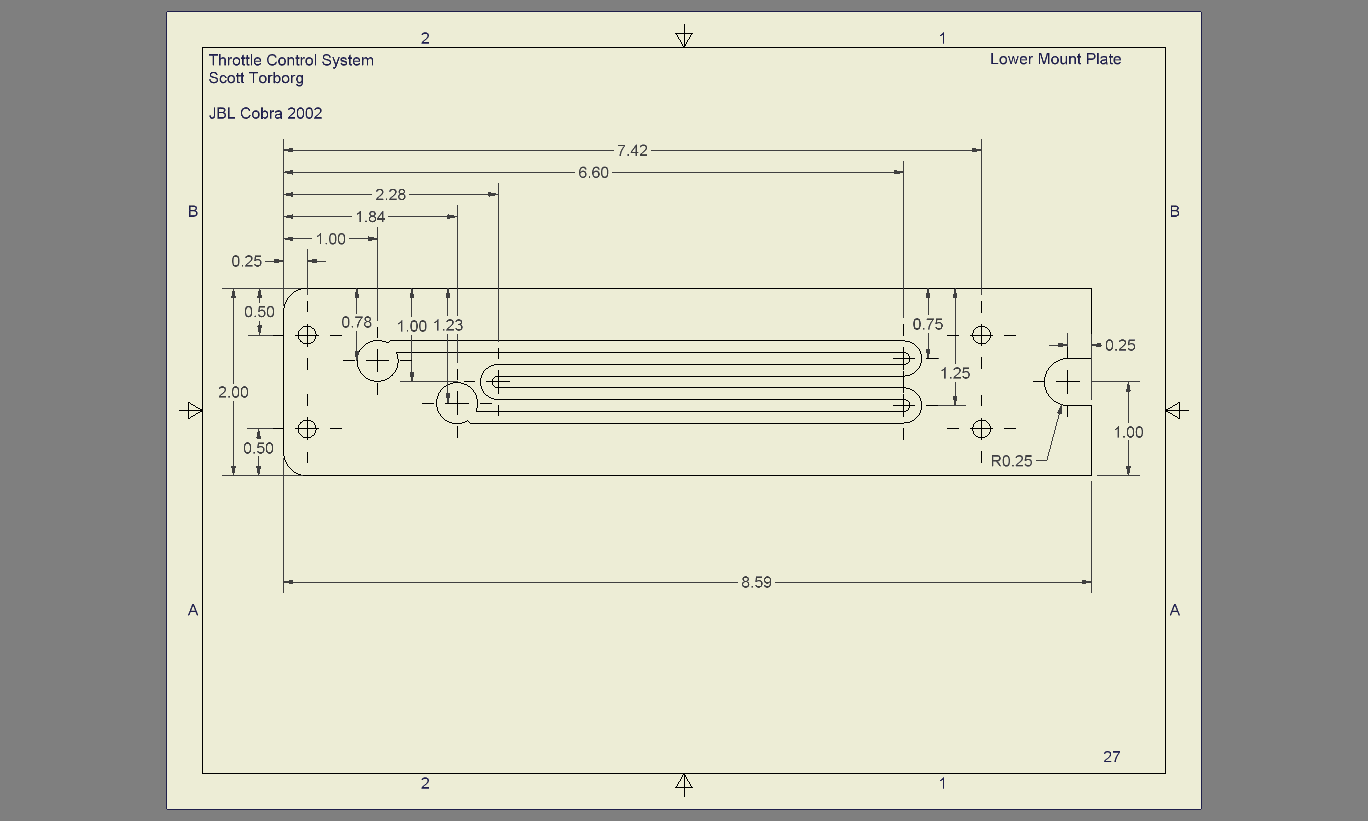

Drawing 26 - Projected view of lower mount plate with holes dimensioned.

Drawing 27 - Top view of lower mount plate with dimensions.

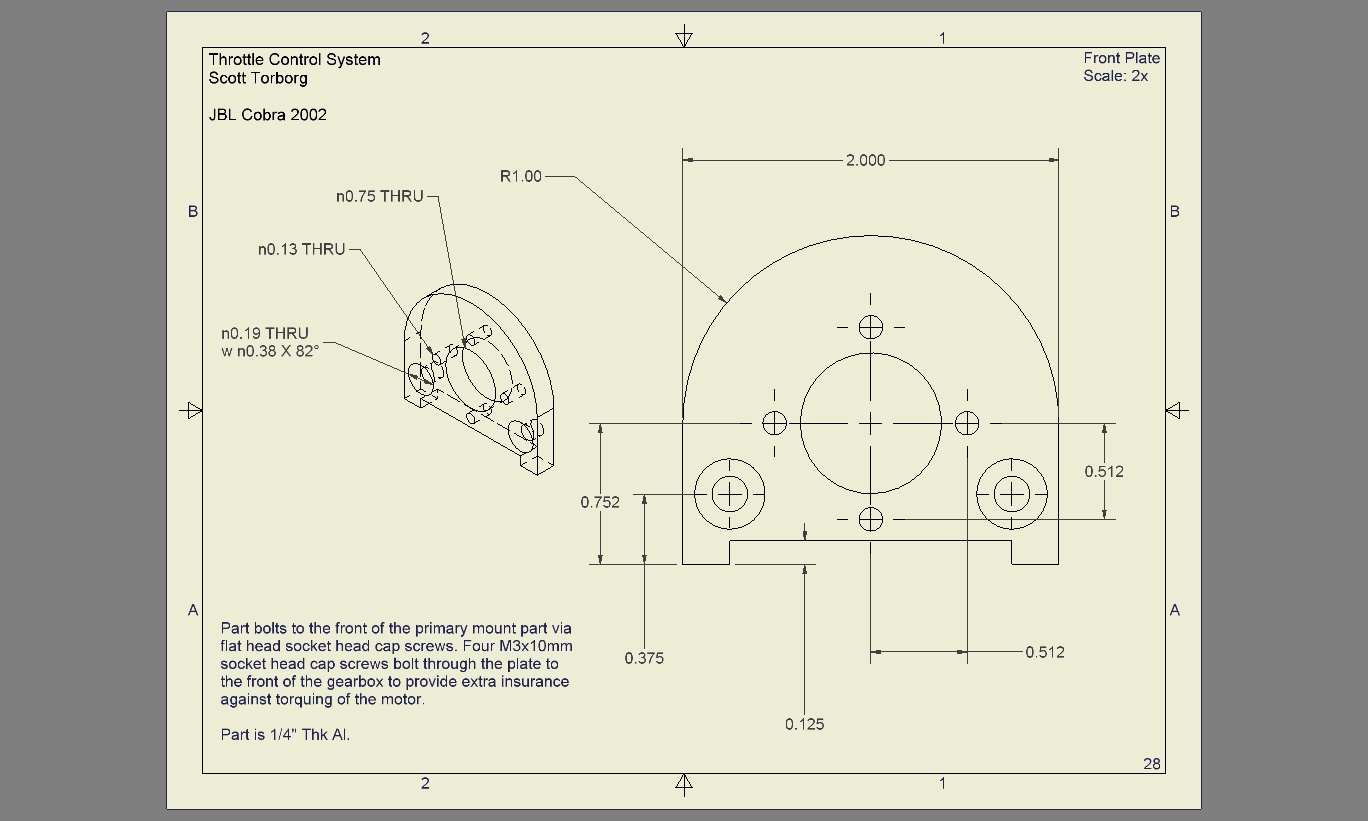

Drawing 28 - Projected and front views of front plate with dimensions.

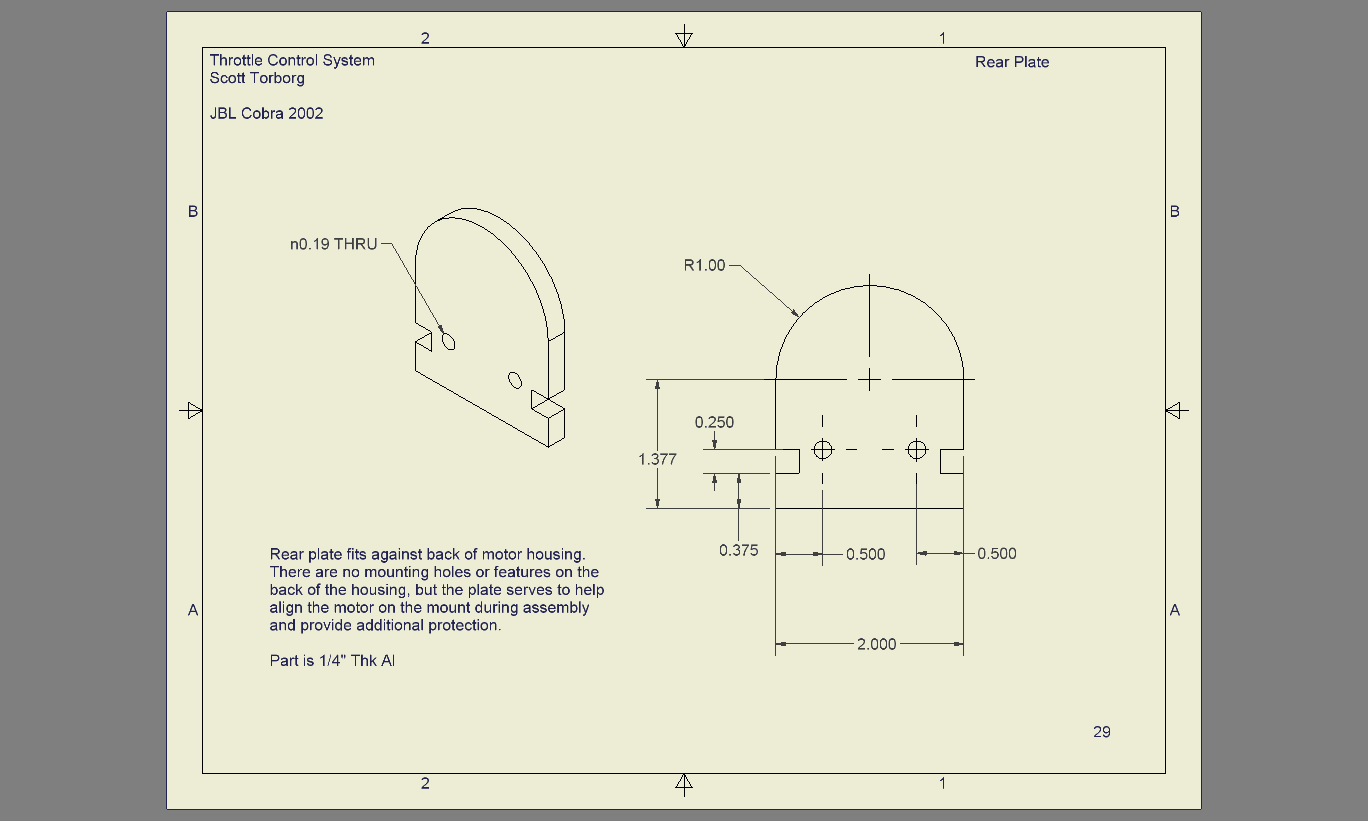

Drawing 29 - Projected and front views of rear plate with dimensions.

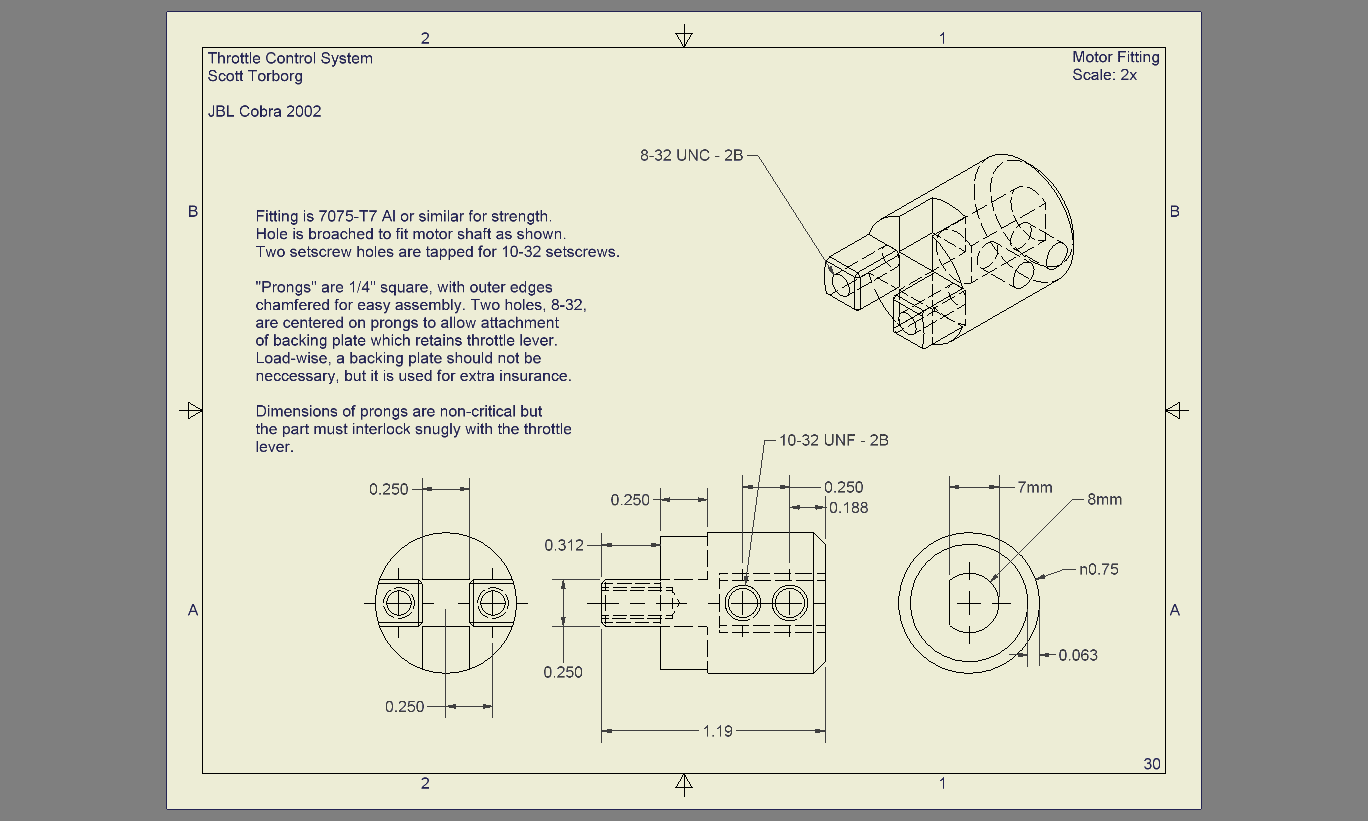

Drawing 30 - Various views of motor fitting with dimensions.

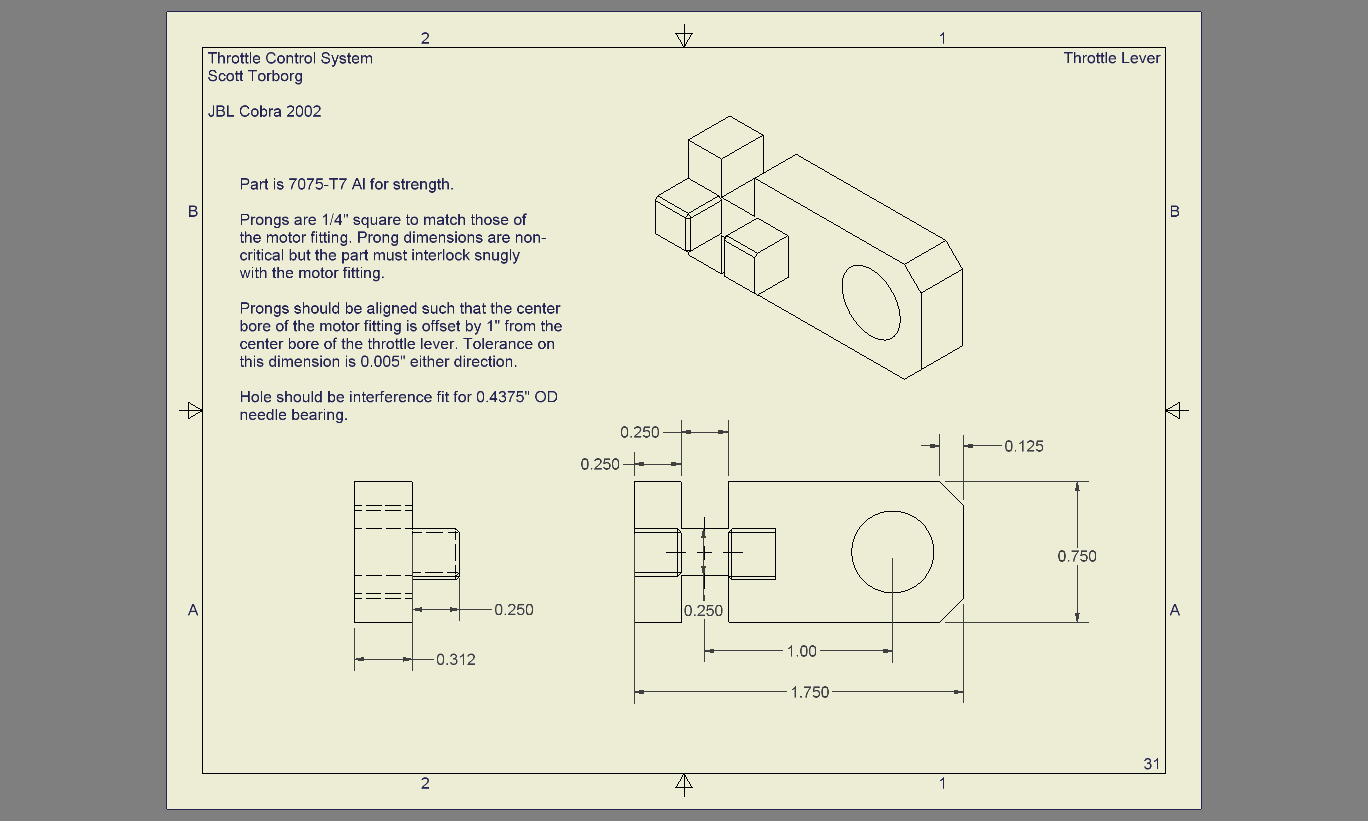

Drawing 31 - Various views of throttle lever with dimensions.

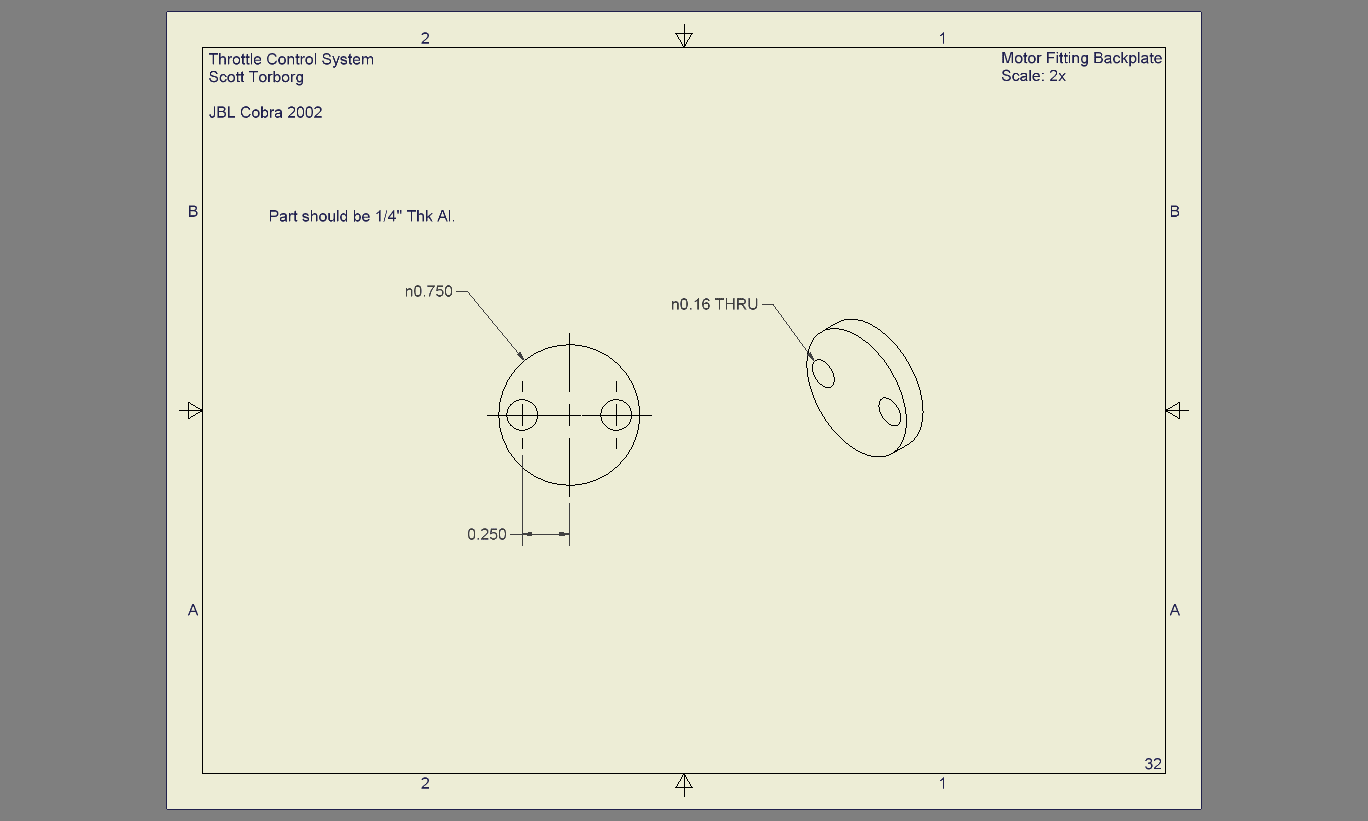

Drawing 32 - Various views of back plate with dimensions.

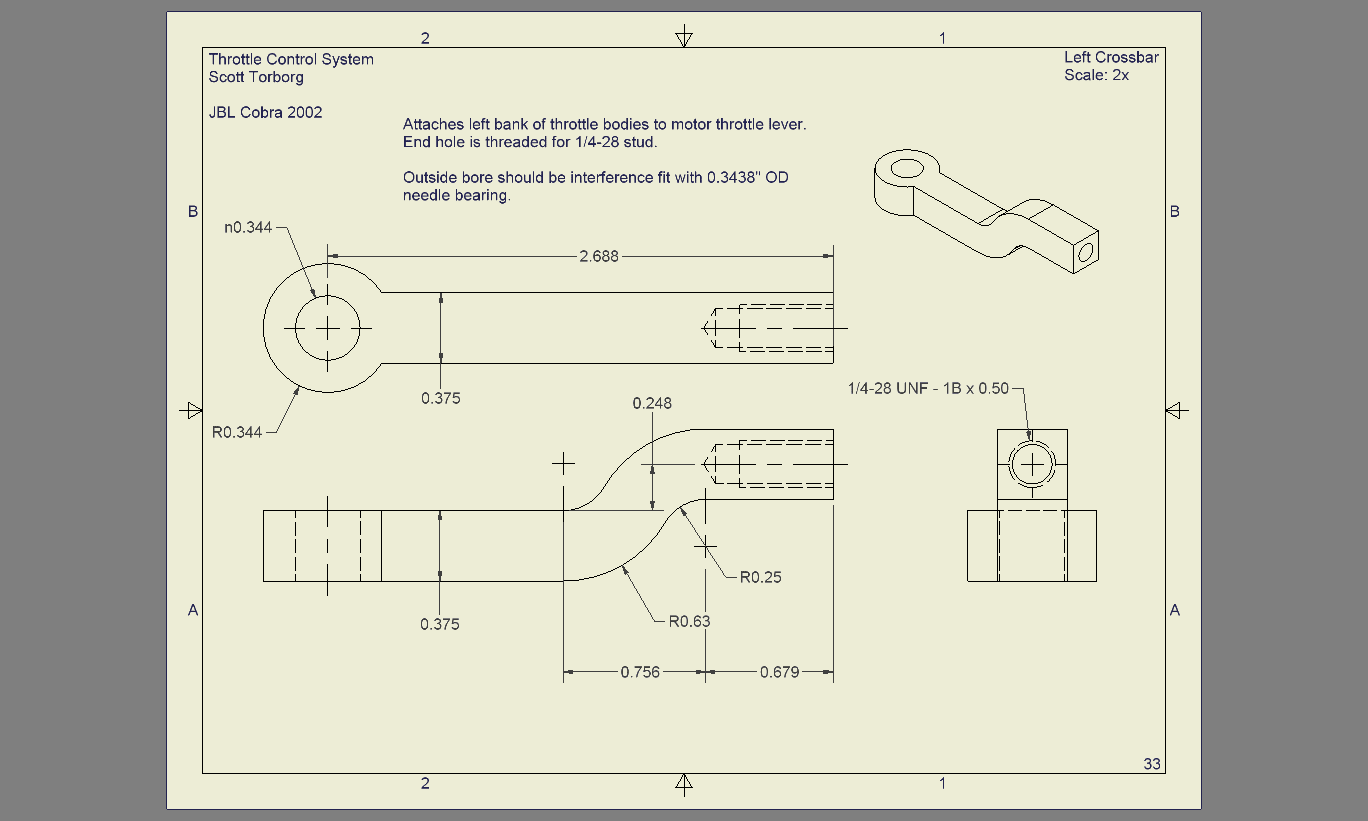

Drawing 33 - Various views of left crossbar with dimensions.

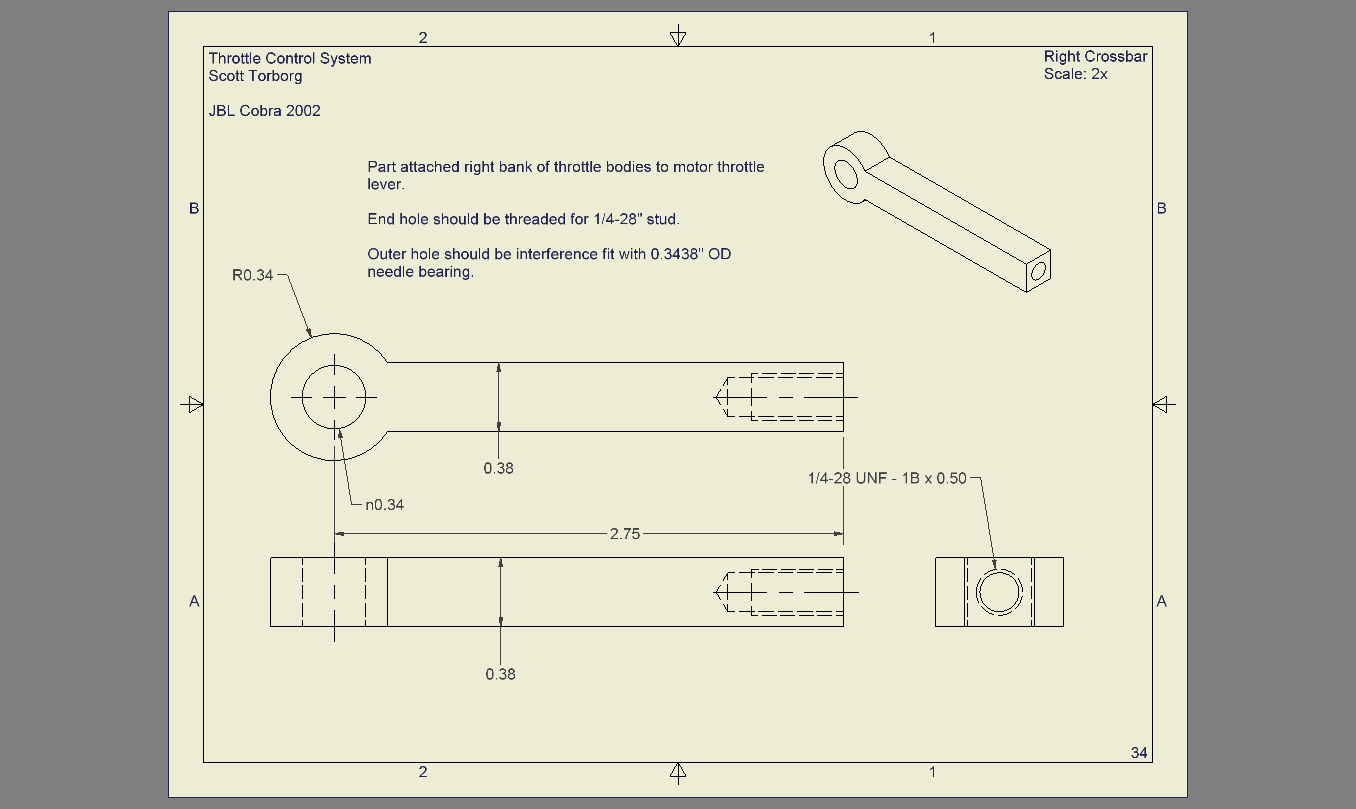

Drawing 34 - Various views of right crossbar with dimensions.

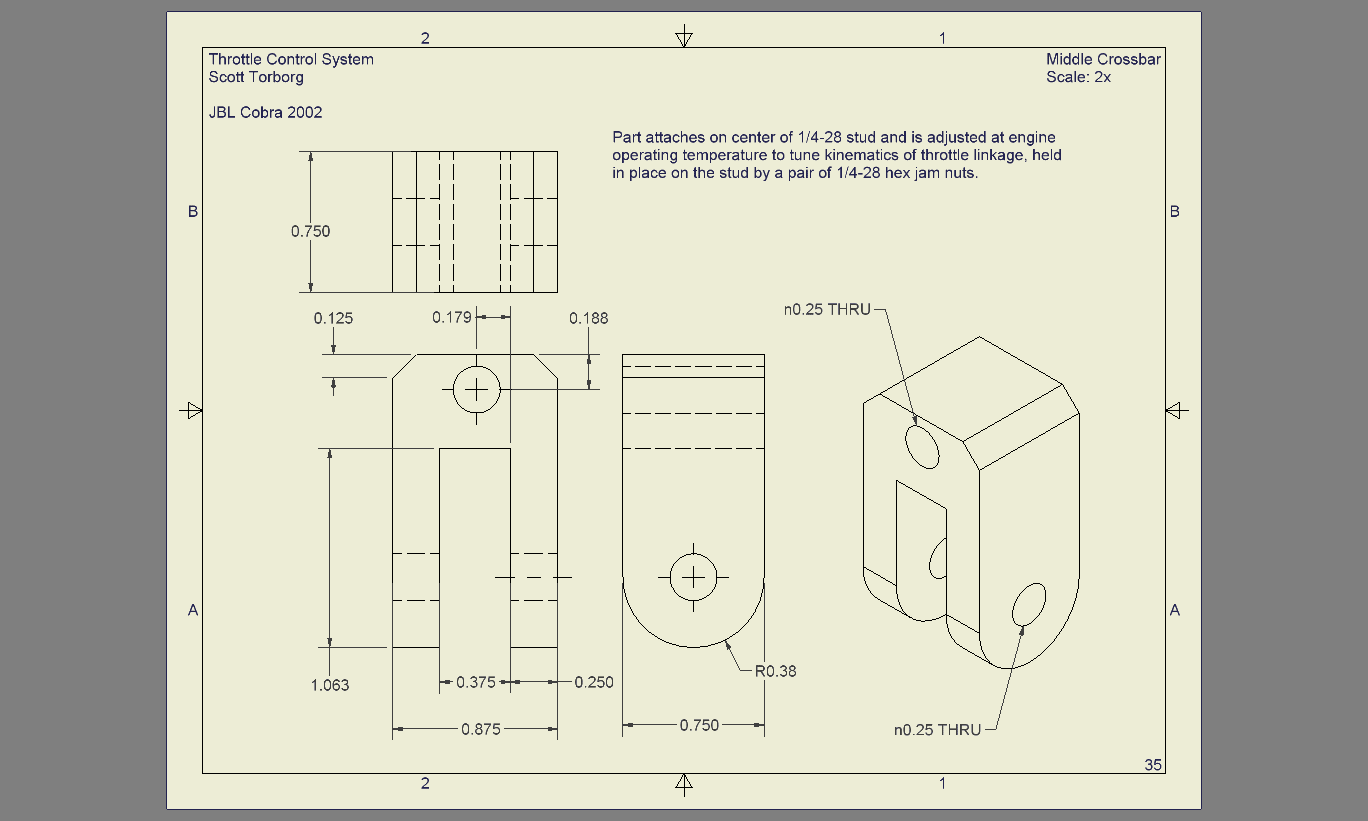

Drawing 35 - Various views of middle crossbar with dimensions.

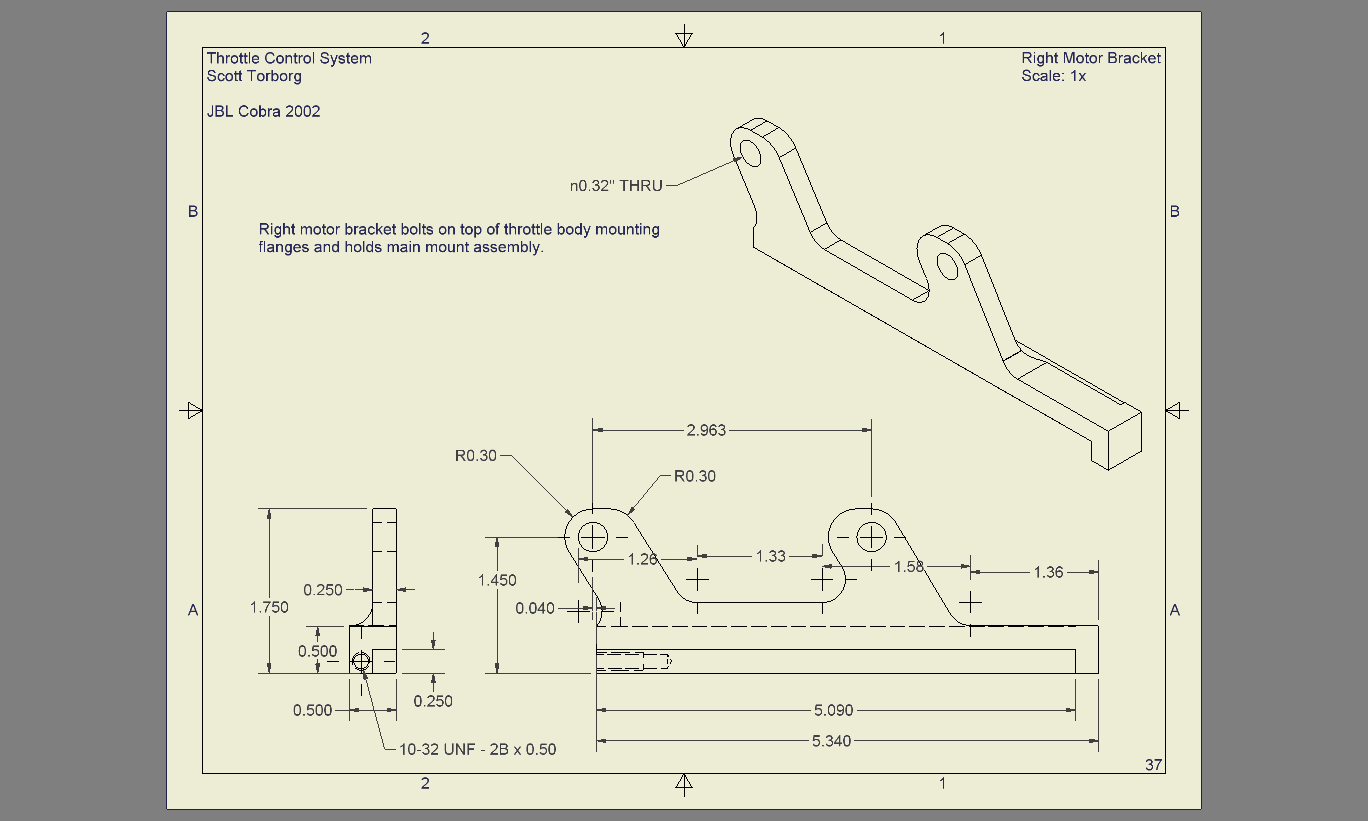

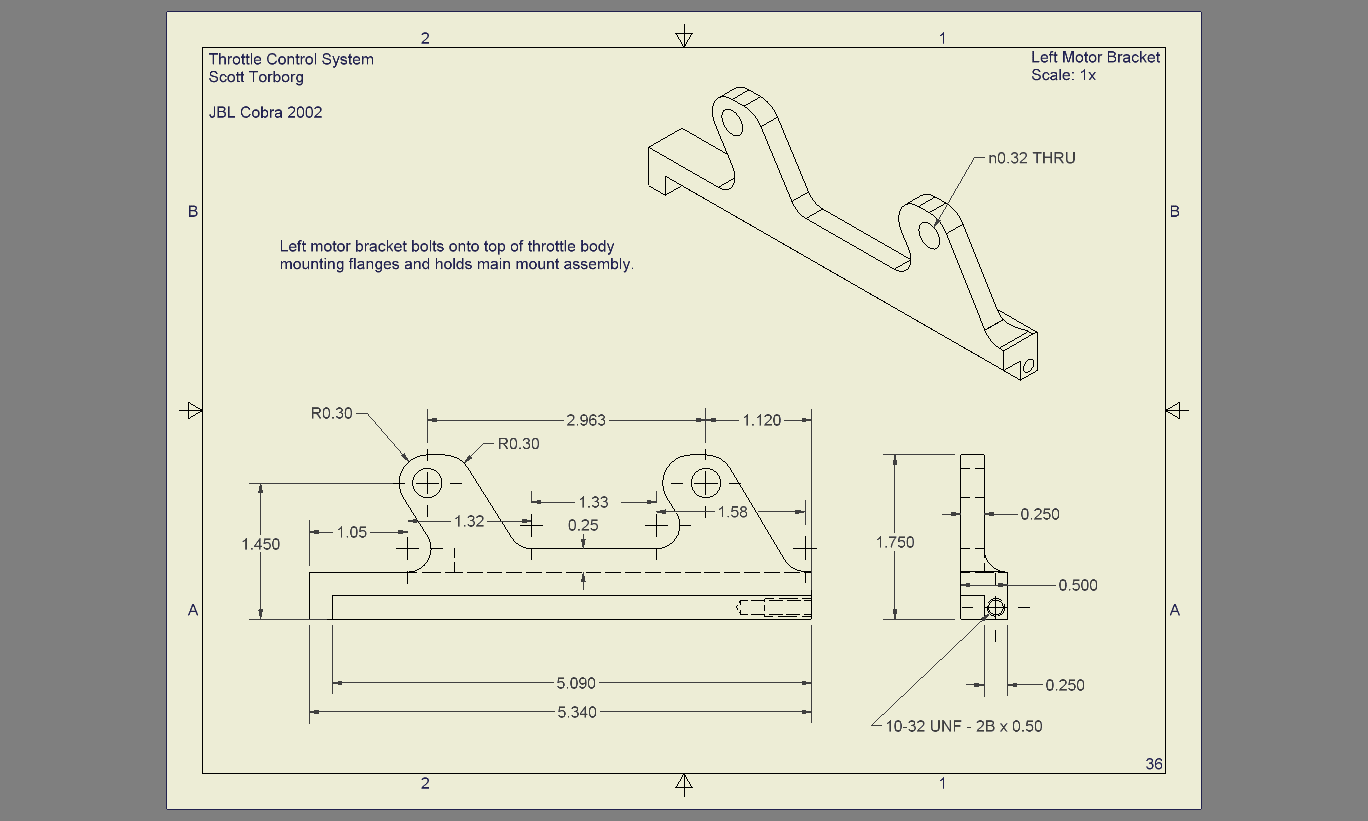

Drawing 36 - Various views of left mounting bracket with dimensions.

Drawing 37 - Various views of right mounting bracket with dimensions.
